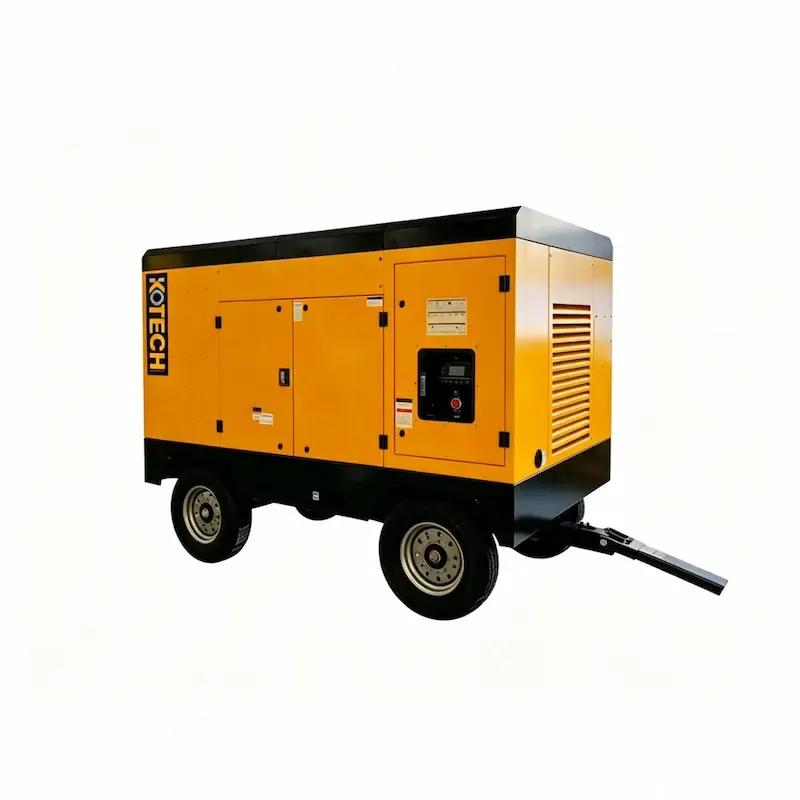

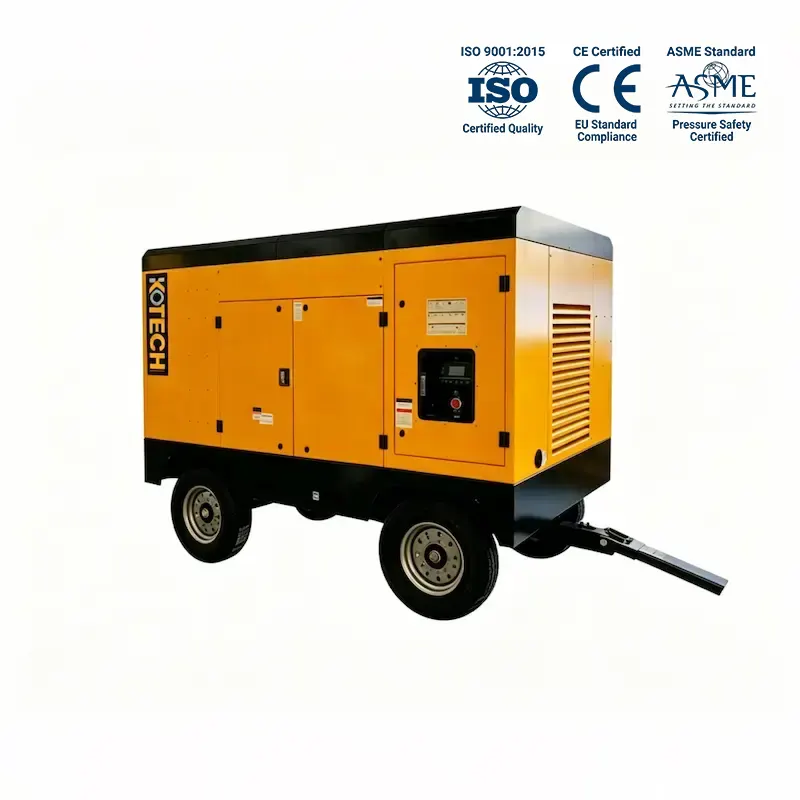

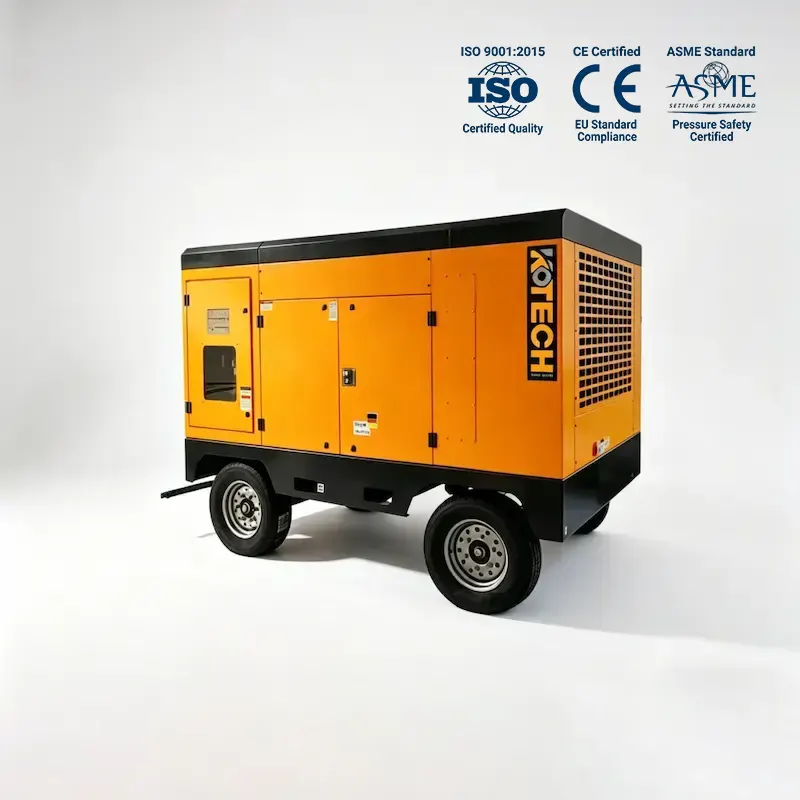

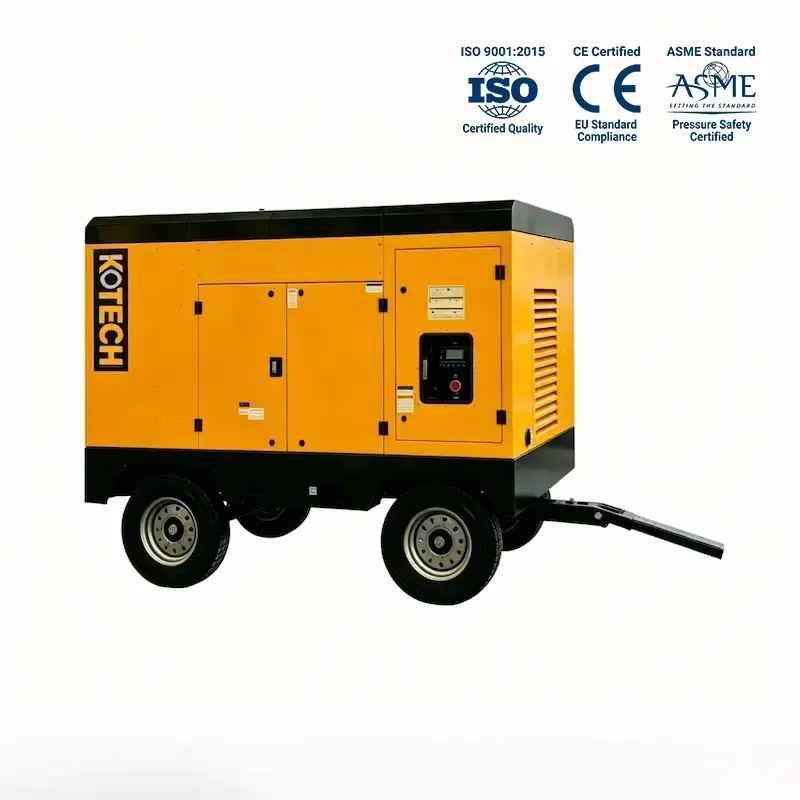

KEP Series Mobile Electric Air Compressor for Mining, Tunneling & Construction
KEP Series electric portable screw air compressors deliver reliable, zero-emission compressed air for worksites with grid power. Built for heavy-duty industrial use, it eliminates diesel exhaust and cuts running costs for tunneling, indoor construction, mining and urban infrastructure projects.
Click the button to consult, and we will provide a fast quotation within 3 hours
- TEFC IP54/IP55 Motor
- Class F insulation, dust & chemical protection
- VSD & Fixed Speed
- Variable speed or fixed speed models available
- Dual Cooling Design
- Air-cooled & water-cooled options
- Working Pressure
- 8–25 bar adjustable working pressure
- Air Delivery
- 6.2–28.0 m³/min stable air output
- Power Range
- 37–280kW scalable power selection
- Off-Road Mobile Chassis
- Towable frame with wear-resistant dampening
- Smart Ventilation System
- High-efficiency cold-box heat dissipation
- Working Pressure
- 8 - 25bar
- Air Delivery
- 6.2 - 28.0m3/min
- Power Rate
- 37 - 280kw
Why KEP Electric Portable Compressor Outperforms Diesel Units
Key Pain Points for Industrial Procurement Teams
- Rising diesel fuel costs continuously inflate long-term project operating budgets
- Strict environmental codes prohibit diesel exhaust inside tunnels and confined spaces
- Frequent engine service leads to costly downtime and extra labor expense
- Fluctuating air pressure reduces efficiency of pneumatic drilling & breaking tools
- Large diesel compressors are bulky and difficult to move between work zones
How KEP Series Solves Your On-site Air Challenges
- Grid-powered electric design removes fuel cost volatility and reduces running expense
- Emission-free operation fully complies with indoor and underground environmental rules
- Robust electric motor design with far fewer consumable parts and less scheduled maintenance
- Precision screw airend maintains constant stable pressure for pneumatic tools
- Mobile towable chassis enables fast deployment and flexible movement on job sites
- IP55-rated motor delivers reliable performance in dusty, humid mining & construction sites
Typical Application Sites
The KEP Series Electric Portable Air Compressor represents a versatile solution for various applications, prominently employed in garages, workshops, and construction sites. This electric-driven compressor offers a clean and efficient power source, especially suitable for users who prioritize mobility and convenience.
Electric-Powered Efficiency:
The Premium efficiency TEFC IP54/IP55 motor (Class F insulation) protects against dust and chemicals, and provides a reliable and environmentally friendly power source, ensuring long-term performance with no carbon emissions.
Portability:
This series of electric portable air compressor is specially designed for on-the-go applications. Its four off-road tires and wear resistant type damped chassis allows it to go wherever it’s needed at any time. The towable support bar also allows it to be easily transported by vehicles between different work sites, which greatly enhanced its flexibility and portability.
Versatile Applications:
This series of electric portable air compressor is small in size, light in weight, easy to transport and move, and also space-saving. Suited for a range of environments including workshops, auto repair garages, and construction sites, where mobility and adaptability are crucial.
Operating Design:
The electric portable air compressor also got a humanized operating design, which is easy to connect with the power equipment, save both time and labor.
Ventilation system:
Powerful ventilation and cold box design gives it excellent heat dissipation effect, ensures the low temperature inside the compressor unit.
Frequently Asked Questions
The KEP series requires access to an industrial power supply (380V/415V/460V). If your site lacks electricity, we recommend our KDS Series (Diesel Portable). However, if a generator is available on-site, using the KEP series is more fuel-efficient and environmentally friendly than using a diesel-driven compressor directly.
Maintenance is significantly lower. Without an internal combustion engine, you avoid frequent oil and filter changes for the engine. You only need to maintain the screw air end and the electric motor, which reduces overall maintenance costs by over 50% and minimizes downtime.
Yes. Our units feature high-protection motors (IP54/IP55) and reinforced dust-proof electrical cabinets. The heavy-duty intake filtration system is specifically designed to prevent dust and moisture from damaging the internal components in extreme conditions.
Absolutely. KOTECH provides customized motor configurations. We can supply units compatible with 220V, 380V, 415V, 440V, or 460V at either 50Hz or 60Hz to meet the specific electrical standards of your region.
Yes. The KEP series is built on a heavy-duty trailer chassis with a high-strength suspension system and a reinforced tow bar. Whether it’s high-speed towing or moving across uneven mining surfaces, the structural integrity of the piping and components remains protected.
Selection is primarily based on your required Air Delivery (cfm/m³/min) and Working Pressure (bar/psi). For instance, shotcreting usually requires 10-13 bar, while pneumatic drilling might need higher pressure. Our engineers are available to provide a free technical consultation to match the perfect model to your tools.
KEP Series Electric Portable Compressor Selection Table
| Model | Air Delivery-m³/min | Working Pressure-bar | Oil Content-ppm | Outlet Connection | Main Motor Power-kw | Main Motor Speed-r/min | Voltage-V/Ph/Hz | Start Mode | Drive Method | Cooling Fan Power-Kw | Dimension(mm)-L | Dimension(mm)-W | Dimension(mm)-H | Weight-Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KEP-6/8 | 6.2 | 8 | ≤5 | 1*1-1/4" | 37 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 1*1.1Kw | 3016 | 1616 | 1449 | 1200 |
| KEP-10/8 | 10.2 | 8 | ≤5 | 1*1-1/4" | 55 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 1*2.2Kw | 4050 | 1700 | 2200 | 1850 |
| KEP-13/8 | 13 | 8 | ≤5 | 1*1-1/4" | 75 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 1*2.2Kw | 4050 | 1700 | 2200 | 2000 |
| KEP-10/13 | 10.2 | 13 | ≤5 | 1*1-3/4", 11-1/2" | 75 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 1*2.2Kw | 4050 | 1700 | 2200 | 2000 |
| KEP-13/13 | 13 | 13 | ≤5 | 1*1-3/4", 11-1/2" | 90 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 1*2.2Kw | 4050 | 1750 | 1900 | 2150 |
| KEP-16/8 | 16 | 8 | ≤5 | 1*1-3/4", 11-1/2" | 90 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 1*2.2Kw | 4050 | 1750 | 1900 | 2250 |
| KEP-16/12 | 16 | 12 | ≤5 | 1*1-3/4", 11-1/2" | 110 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 1*2.2Kw | 4050 | 1750 | 1900 | 2450 |
| KEP-16/10 | 16 | 10 | ≤5 | 1*1-3/4", 11-1/4", 12" | 110 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 1*3Kw | 4438 | 1920 | 1850 | 3050 |
| KEP-20/8 | 20 | 8 | ≤5 | 1*1-3/4", 1*1-1/4", 1*2" | 110 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 1*3Kw | 4438 | 1920 | 1850 | 3150 |
| KEP-20/10 | 20 | 10 | ≤5 | 1*1-3/4", 1*1-1/4", 1*2" | 132 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 1*3Kw | 4438 | 1920 | 1850 | 3300 |
| KEP-22/13 | 22 | 13 | ≤5 | 1*1-3/4", 1*2" | 160 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 2*2.2Kw | 3750 | 1850 | 2210 | 4100 |
| KEP-24/13 | 24 | 13 | ≤5 | 1*1-3/4", 1*2" | 185 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 2*2.2Kw | 3750 | 1850 | 2210 | 4200 |
| KEP-20/17 | 20 | 17 | ≤5 | 1*1-3/4", 1*2" | 160 | 2950 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 2*2.2Kw | 3750 | 1850 | 2210 | 4100 |
| KEP-24/21 | 24 | 21 | ≤5 | 1*1-3/4", 1*2" | 220 | 1480 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 2*3Kw | 4100 | 4049 | 3100 | 5300 |
| KEP-28/17 | 28 | 17 | ≤5 | 1*1-3/4", 1*2" | 220 | 1490 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 2*3Kw | 1850 | 1866 | 2180 | 5900 |
| KEP-26/25 | 26 | 25 | ≤5 | 1*1-3/4", 1*2" | 280 | 1490 | 380V 3Ph 50Hz | Y-△ | Direct Driven | 2*3Kw | 2210 | 1869 | 1930 | 6100 |
