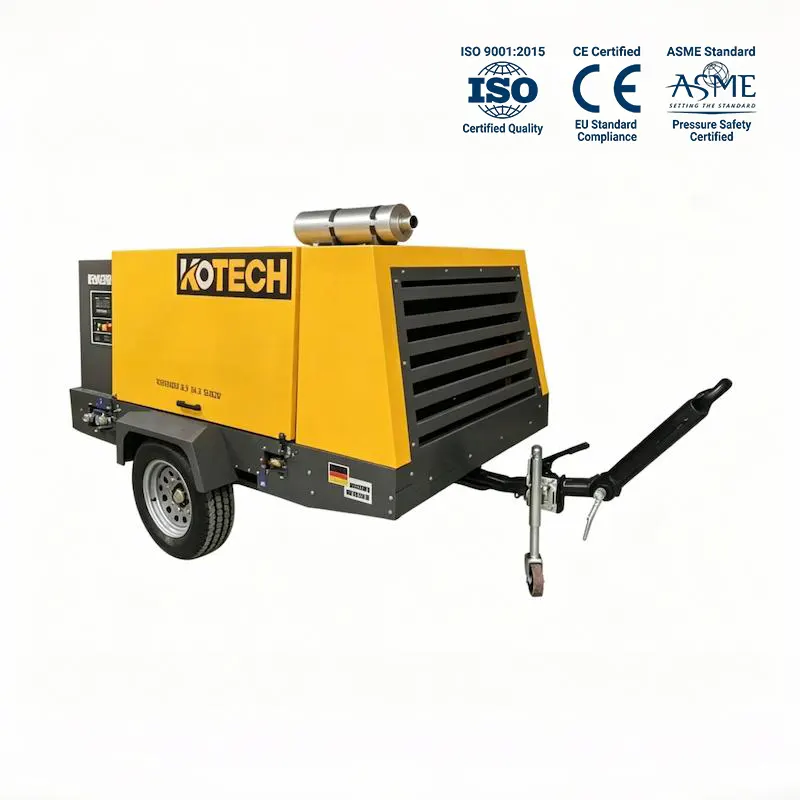

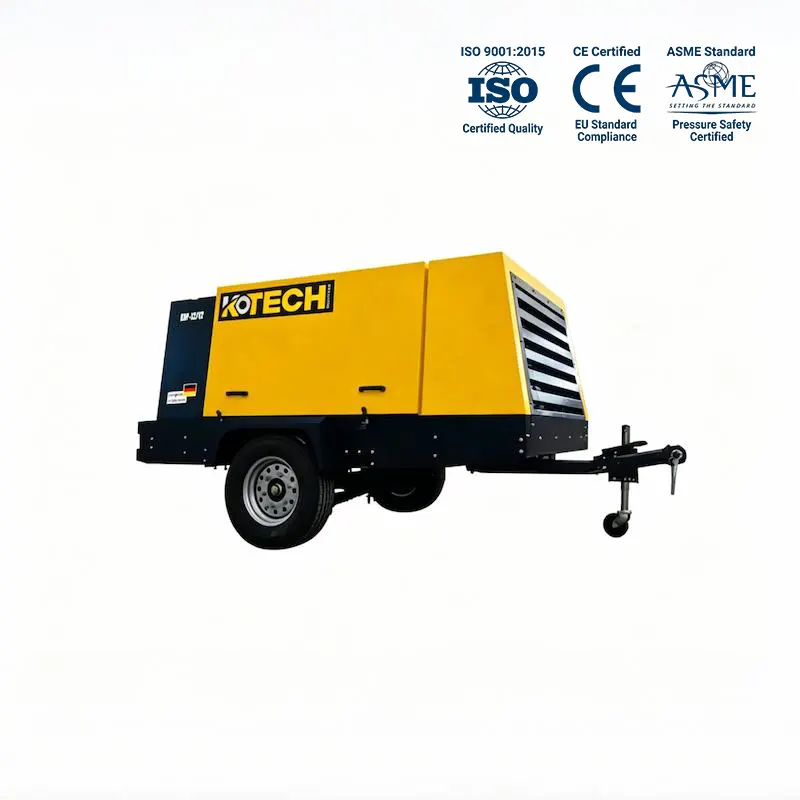

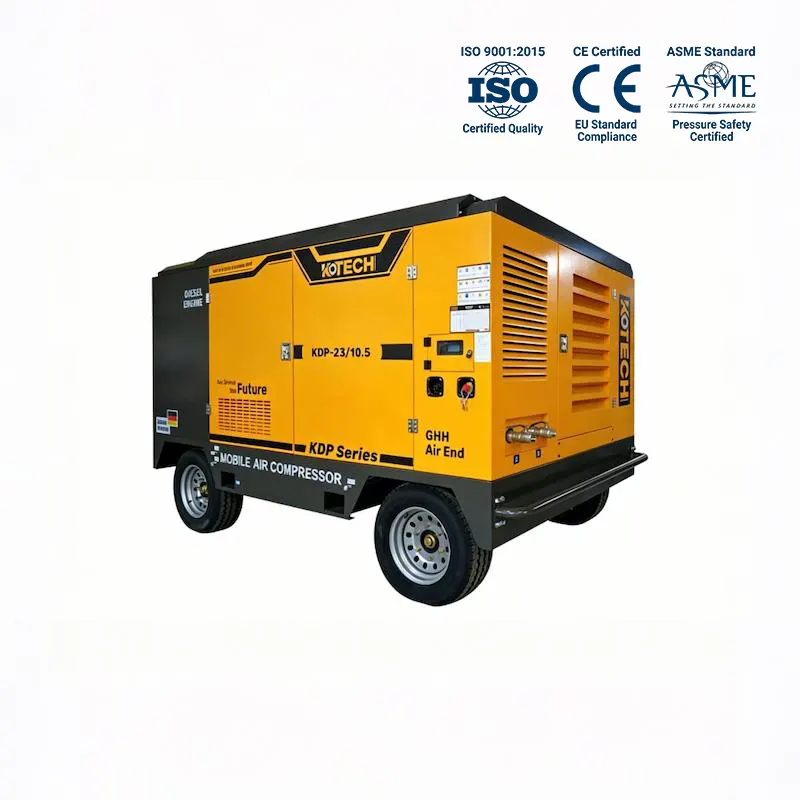

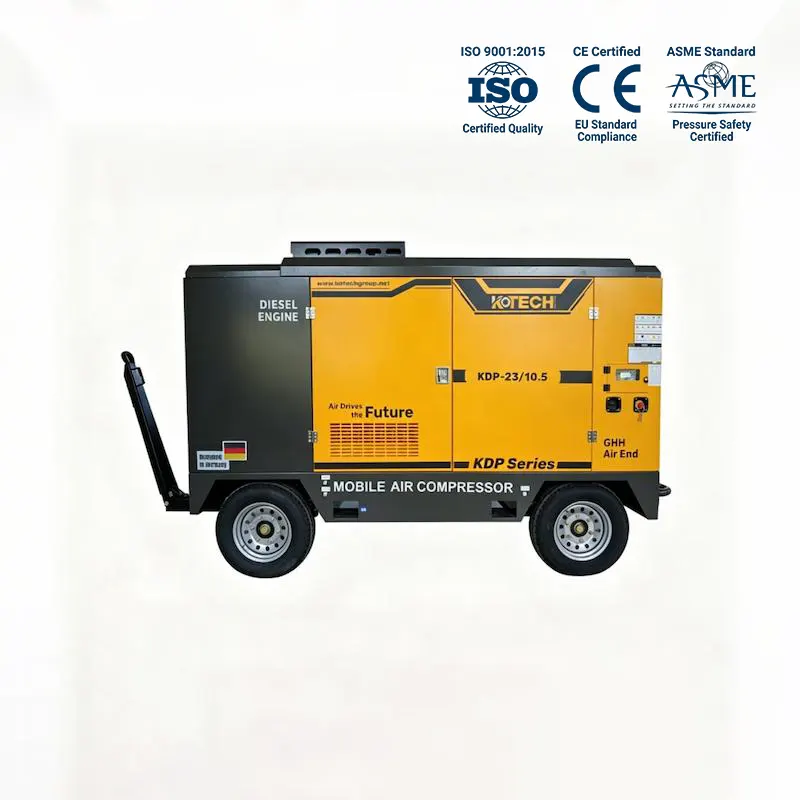

KOTECH KDP PACE Series-Adjustable Pressure Heavy-Duty Towable Diesel Screw Air Compressor
The KDP PACE series features revolutionary pressure-adjustable technology, allowing one machine to handle multiple applications from 7 to 35 bar. Large diesel air compressor range of compressors is designed to cover nearly every application, from construction and infrastructure, to landscaping and oil and gas, to plant backup air, among others.
Click the button to consult, and we will provide a fast quotation within 3 hours
Functional Configuration
● Stage V or Tier 4 emission level options.
● Kubota/Yanmar/Perkins/Volvo/Cummins,etc,.
● PACE Tech-Intelligent pressure-flow adjustable
● GHH Airend-High efficiency screw mechanism
● Mobile Tow-Compact design for easy towing
● Fuel Optimized-Economical fuel consumption control
● Wide Adaptability-Stable operation in harsh environments
● One machine can handle the job of three fixed-pressure machines.
● Large diesel air compressor range of compressors is designed to cover nearly every application, from construction and infrastructure, to landscaping and oil and gas, to plant backup air, among others.
Performance Parameters
- Working Pressure
- 7 - 34.5bar（101 - 500 psi）
- Air Delivery
- 2 - 25 m³/min （70 - 875cfm）
- Power Rate
- 15 - 186kw（20 - 249 hp）
- Product Customization
- Customize Performance and Parameters per Client Requirements
Why KDP PACE Series Leads the Drilling Market
What Industrial Buyers Usually Worry About
- Needing multiple compressors for different site pressure requirements
- High fuel consumption when running tools at non-optimal pressures
- Lack of reliable engine parts in remote international project sites
How This Product Reduces Procurement Risk
- One PACE unit covers 7 to 14 bar, replacing multiple standard units
- Precise electronic pressure control significantly lowers fuel costs
- Standard Perkins components ensure 24/7 global parts availability
Recommended Applications
Looking for a reliable towable diesel air compressor or trailer mounted air compressor? Discover our high-performance towable air compressor and pull behind air compressor lines. Engineered with innovative PACE technology and a high chassis design for extreme off-road terrain, maximum fuel efficiency, and superior mobility.
- PACE Tech: 1 Machine Replaces 3 Fixed-Pressure Units (Save Initial Investment & Fuel)
- High-Displacement & Efficiency: 70 – 875cfm (Custom Ultra-Large Displacement Available | Custom Ultra-High Pressure Available)
- Robust Mobility: Adjustable traction towbar and heavy-duty high chassis for rugged off-road terrains
Core Specifications Overview: Working Pressure: 7 – 34.5 bar （Custom Ultra-High Pressure Available）| Air Delivery: 70 – 875cfm(Custom Ultra-Large Displacement Available) | Power Rate: 15.3 – 186kw

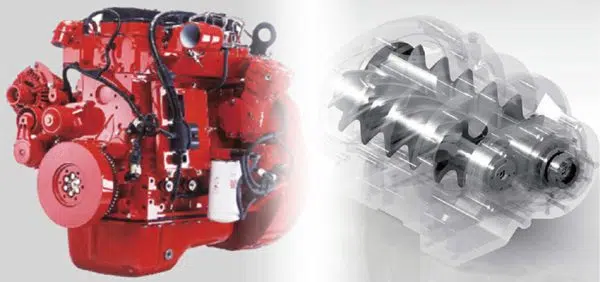

Powerful engines:
Well-known diesel engine brands for option: Kubota/Yanmar/Perkins/Volvo/Cummins,etc,. Heavy duty engine with turbo charge and big power for running air compressor.
Optimal air end:
Ingersoll Rand GHH air end and Kotech air end for option, can surely satisfy your requirement from multiple dimensions.

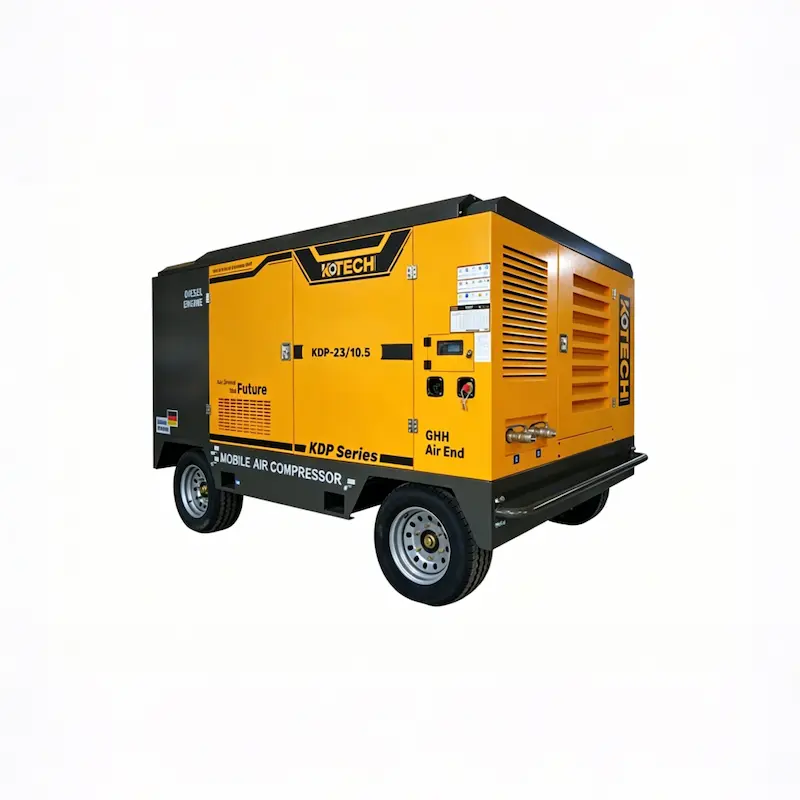

[caption id="attachment_399" align="aligncenter" width="800"]
Large Diesel Mobile Air Compressor[/caption]
Engineered for Every Jobsite: High-Efficiency Construction Air Compressor Solutions
Finding the right construction air compressor shouldn’t be a hassle. Whether you need a versatile portable screw air compressor for remote outdoor projects, a heavy-duty portable air compressor for sale to expand your equipment fleet, or a rugged industrial diesel air compressor built for extreme environments, Kotech has you covered.
- ⚡ Built for Tough Jobsite Conditions
- What it delivers: As a premier jobsite air compressor supplier, our units feature multi-stage filtration and heavy-duty cooling systems designed to withstand extreme ambient heat, dust, and continuous daily operation.
- 🏔️ Smart PACE Technology for Multi-Application Use
- What it delivers: A single mobile air compressor can dynamically adjust pressure ranges, allowing one machine to seamlessly handle tasks typically requiring multiple fixed or traditional construction air compressor setups.
- 🌡️ Easy Towing & Quick Deployment
- What it delivers: Equipped with adjustable traction towbars and working brakes, making our portable diesel air compressor line exceptionally easy to hitch, transport, and deploy rapidly across scattered municipal or highway worksites.
- 🛡️ Engine Options Tailored for Your Fleet
- What it delivers: Reliable power delivery from world-renowned turbo-charged engine brands, ensuring your portable industrial air compressor maintains optimal output under heavy pneumatic tool loads.
Find Your Ideal Portable Air Compressor for Your Project
Explore our comprehensive series—featuring our high-demand 185 cfm diesel air compressor for urban construction, up to heavy-duty large portable air compressor systems for deep-ground operations:
- Versatile Power Options: Powered by heavy-duty turbo-charged engines (Kubota, Yanmar, Perkins, Volvo, Cummins).
- Advanced Control: British-brand DSE controller providing real-time CAN communication for diesel levels, supply pressure, and exhaust monitoring.
- Dual Air End Choices: Ingersoll Rand GHH air ends and Kotech air ends to meet multi-dimensional industrial requirements.
(Need a custom CFM or pressure output? Contact our engineering team for tailored specifications.)

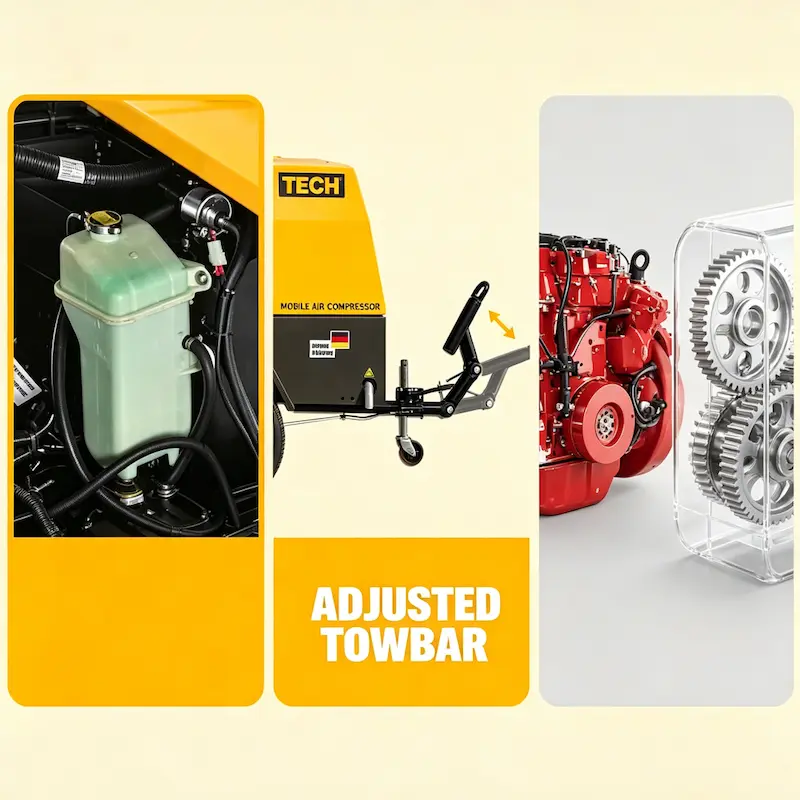

Expansion tank:
The exclusively designed expansion tank with refrigerating liquid. When the water will be more in high temperature, and the extra water will be stored in the expansion tank. When the temperature is low, it will return to the water tank to ensure that no air enters the water tank and make sure the cooling efficiency is 100%.

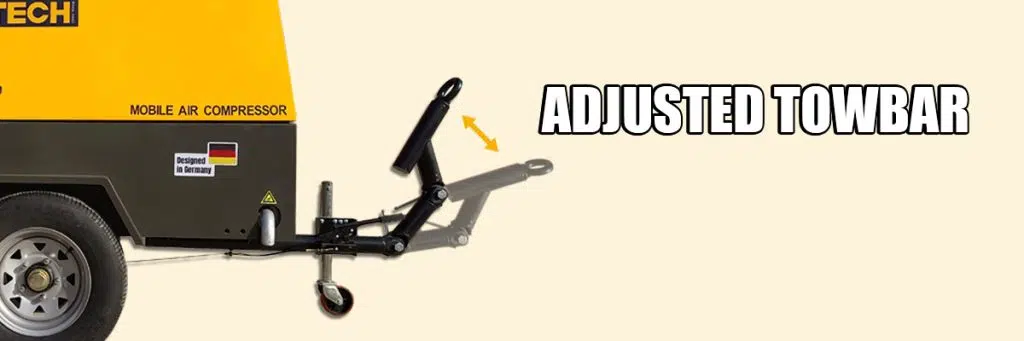

Adjusted Towbar:
Traction can be adjusted, suitable for any car traction, with working brake maximizing the security. The axles of air compressor is easy to disassemble and install, which is very convenient.
KDP PACE Series Technical Selection Table
| NEW TYPE | Motor power (kW) | Rated capacity (m³/min) | Rated capacity (cfm) | Pressure (bar) | Engine’s type (L) | Noise (dB [A]) | Dimensions (L,W,H mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| KDP 70 PACE | 15.3 | 2 | 70 | 7 | Perkins 403-D07 | 66 | 3114*1250*1137 | 500 |
| KDP 100 PACE | 21 | 2.9 | 100 | 7 | Perkins 403-D11 | 69 | 3114*1340*1225 | 690 |
| KDP 100 PACE | 21 | 2.5 | 88 | 10 | Perkins 403-D11 | 69 | 3114*1340*1225 | 690 |
| KDP 155 PACE | 35.7 | 4.4 | 155 | 7 | Perkins 404D-22 | 69 | 3250*1485*1225 | 1000 |
| KDP 155 PACE | 35.7 | 3.5 | 123 | 10 | Perkins 404D-22 | 69 | 3250*1485*1225 | 1000 |
| KDP 155 PACE | 35.7 | 2.9 | 102 | 12 | Perkins 404D-22 | 69 | 3250*1485*1225 | 1000 |
| KDP 185 PACE | 35.7 | 5.2 | 185 | 7 | Perkins 404D-22 | 75 | 3320*1485*1370 | 1000 |
| KDP 185 PACE | 35.7 | 4 | 140 | 10 | Perkins 404D-22 | 75 | 3320*1485*1370 | 1000 |
| KDP 185 PACE | 35.7 | 3.2 | 110 | 12 | Perkins 404D-22 | 75 | 3320*1485*1370 | 1000 |
| KDP 388 PACE | 82 | 11 | 388 | 7 | Perkins 1104D-44T | 78 | 4223*1740*1597 | 1800 |
| KDP 388 PACE | 82 | 10.6 | 375 | 8 | Perkins 1104D-44T | 78 | 4223*1740*1597 | 1800 |
| KDP 388 PACE | 82 | 10 | 353 | 10 | Perkins 1104D-44T | 78 | 4223*1740*1597 | 1800 |
| KDP 388 PACE | 82 | 8.8 | 310 | 12 | Perkins 1104D-44T | 78 | 4223*1740*1597 | 1800 |
| KDP 875 PACE | 186 | 24.8 | 875 | 8.6 | Perkins 1106D-E70TA | 85 | 3500*1900*1936 | 3490 |
| KDP 875 PACE | 186 | 21.3 | 750 | 10 | Perkins 1106D-E70TA | 85 | 3500*1900*1936 | 3490 |
| KDP 875 PACE | 186 | 19 | 670 | 12 | Perkins 1106D-E70TA | 85 | 3500*1900*1936 | 3490 |
| KDP 875 PACE | 186 | 17.2 | 607 | 14 | Perkins 1106D-E70TA | 85 | 3500*1900*1936 | 3490 |
Have Questions? Contact Us
Fill out the form below and we'll get back to you within 24 hours.
Frequently Asked Questions
PACE (Pressure Adjusted Cognitive Electronics) technology allows you to set the pressure and flow according to your specific tool requirements. This means one KDP PACE unit can handle tasks that previously required multiple different compressors.
Perkins engines provide the highest reliability and fuel efficiency in the industry. More importantly, they offer a global service network, ensuring you can find spare parts and technical support anywhere in the world.
Yes. The KDP PACE series is engineered with altitude-compensated engine systems, maintaining stable performance and sufficient air delivery even at altitudes up to 4500 meters.
By adjusting the pressure to exactly what you need, the engine doesn't work harder than necessary, significantly reducing fuel consumption. Also, one machine handles more tasks, reducing transport and capital costs.
Routine maintenance includes oil changes, filter replacements, and cooling system checks. We provide a detailed maintenance schedule and offer 24/7 technical support to ensure your uptime.
Absolutely. As a factory-direct supplier, Kotech offers OEM/ODM services. We can customize the chassis, tank capacity, or additional filtration based on your specific site conditions.
