KEL Series Low Pressure Screw Air Compressor | 1.5-5.5 Bar Energy Saving | Kotech
Specifically engineered for industries requiring 1.5-5 bar pressure, the KEL Series eliminates energy waste caused by over-compression. Delivering massive air flow with significantly lower power consumption for textile, cement, and glass manufacturing.
Click the button to consult, and we will provide a fast quotation within 3 hours
Functional Configuration
- 24/7
- Continuous duty performance
- High Efficiency
- Volumetric Performance
- Low Pressure
- For Low Pressure Use
- Low RPM
- For Low RPM Operation
Performance Parameters
- Working Pressure
- 1.5 - 5.5 bar (21.76 - 79.77 psi)
- Air Delivery
- 3.9 - 77.7 m³/min (137.73 - 2743.95 cfm)
- Power Rate
- 22 - 355 kW (29.50 - 476.06 hp)
Why KEL Series Defines Low Pressure ROI
What Low-Pressure Air Users Usually Face
- Huge energy loss from reducing 7-bar air to 2-3 bar
- High maintenance costs of running standard units at low load
- Insufficient air volume during peak textile or conveying demand
How This Product Redefines Your Efficiency
- Eliminate throttling loss and cut power bills by 30% or more
- Increased air delivery ensures stable production at high speeds
- Reduced mechanical stress ensures 100% industrial uptime
Recommended Applications
KEL Series Low pressure screw air compressor is a new compressor produced according to the national policy of energy saving,emission reduction and environment protection. It changes the traditional compressor with relatively high pressure. It transfers the compressed air after pressure reduction to the air consumer, which waste large amounts of energy.
The low pressure screw air compressor can be distributed according to the air pressure of the user, to satisfy the process flow with minimum energy. The manufacturing cost of your product can be largely improved.
For example, if your process system only needs 3 bar pressure and the used compressor can provide 7 bar, then it can be reduced to 3 bar, It may take two times power to satisfy you process system, you can choose our low pressure screw compressor only to consume half of the power, and the air pressure in the process system can still be ensured, thus realizing energy saving and emission reduction.
Frequently Asked Questions
Using a standard compressor and reducing the pressure to 2 or 3 bar wastes significant energy. The KEL series is specifically engineered for 1.5-5 bar, allowing for larger air discharge with much lower power consumption, saving you up to 30% or more on energy bills.
The KEL series is optimized to deliver stable compressed air within the 1.5 bar to 5 bar (21-72 PSI) range. This ensures the highest volumetric efficiency for industries that do not require high-pressure air.
This series is ideal for textile manufacturing (weaving/spinning), cement conveying, glass bottle production, chemical fiber processing, and wastewater treatment aeration, where high volume and low pressure are required.
By utilizing an optimized screw airend designed for low-pressure ratios, the KEL series can provide a much larger air delivery (m³/min) than a standard compressor of the same motor power, perfectly meeting the demand for high-volume air.
Yes. Like all Kotech industrial units, the KEL series features a heavy-duty design with superior cooling systems and high-quality bearings, ensuring 100% duty cycle and maximum reliability in harsh factory environments.
No. The maintenance procedures are similar to standard screw compressors. However, because it operates at lower pressure, the internal stress on components is reduced, which often leads to a longer service life for seals and bearings.
Certainly. We offer various motor powers and configurations. Our engineers can help you calculate the exact pressure and flow requirements for your specific production line to ensure the highest possible ROI.
KEL Series Low Pressure Technical Specifications
| Model | Working Pressure (bar) | Air Delivery (m³/min) | Motor Power (kW) | Compression Stages | Length (L)(mm) | Width (W)(mm) | Height (H)(mm) | Weight (kg) | Air Outlet |
|---|---|---|---|---|---|---|---|---|---|
| KEL-15 | 1.5 | 6.5 | 15 | 1 | 1450 | 1000 | 1465 | 1200 | DN50 |
| KEL-15 | 2.0 | 5.9 | 15 | 1 | 1450 | 1000 | 1465 | 1200 | DN50 |
| KEL-15 | 3.0 | 3.9 | 15 | 1 | 1450 | 1000 | 1465 | 1200 | DN50 |
| KEL-15 VSD | 1.5 | 3.3-6.5 | 15 | 1 | 1450 | 1000 | 1465 | 1200 | DN50 |
| KEL-15 VSD | 2.0 | 3.0-5.9 | 15 | 1 | 1450 | 1000 | 1465 | 1200 | DN50 |
| KEL-15 VSD | 3.0 | 2.0-3.9 | 15 | 1 | 1450 | 1000 | 1465 | 1200 | DN50 |
| KEL-18.5 | 1.5 | 8 | 18.5 | 1 | 1450 | 1000 | 1465 | 1400 | DN50 |
| KEL-18.5 | 2.0 | 7.3 | 18.5 | 1 | 1450 | 1000 | 1465 | 1400 | DN50 |
| KEL-18.5 | 3.0 | 4.9 | 18.5 | 1 | 1450 | 1000 | 1465 | 1400 | DN50 |
| KEL-18.5 | 4.0 | 3.9 | 18.5 | 1 | 1450 | 1000 | 1465 | 1400 | DN50 |
| KEL-18.5 | 5.0 | 3.8 | 18.5 | 1 | 1450 | 1000 | 1465 | 1400 | DN50 |
| KEL-18.5 VSD | 1.5 | 4.0-8.0 | 18.5 | 1 | 1450 | 1000 | 1465 | 1400 | DN50 |
| KEL-18.5 VSD | 2.0 | 3.7-7.3 | 18.5 | 1 | 1450 | 1000 | 1465 | 1400 | DN50 |
| KEL-18.5 VSD | 3.0 | 2.5-4.9 | 18.5 | 1 | 1450 | 1000 | 1465 | 1400 | DN50 |
| KEL-18.5 VSD | 4.0 | 2.0-3.9 | 18.5 | 1 | 1450 | 1000 | 1465 | 1400 | DN50 |
| KEL-18.5 VSD | 5.0 | 1.9-3.8 | 18.5 | 1 | 1450 | 1000 | 1465 | 1400 | DN50 |
| KEL-22 | 1.5 | 9.5 | 22 | 1 | 1480 | 1000 | 1465 | 1400 | DN65 |
| KEL-22 | 2.0 | 8.6 | 22 | 1 | 1480 | 1000 | 1465 | 1400 | DN65 |
| KEL-22 | 3.0 | 5.4 | 22 | 1 | 1480 | 1000 | 1465 | 1400 | DN65 |
| KEL-22 | 4.0 | 5.2 | 22 | 1 | 1480 | 1000 | 1465 | 1400 | DN65 |
| KEL-22 | 5.0 | 5 | 22 | 1 | 1480 | 1000 | 1465 | 1400 | DN65 |
| KEL-22 VSD | 1.5 | 4.8-9.5 | 22 | 1 | 1480 | 1000 | 1465 | 1400 | DN65 |
| KEL-22 VSD | 2.0 | 4.3-8.6 | 22 | 1 | 1480 | 1000 | 1465 | 1400 | DN65 |
| KEL-22 VSD | 3.0 | 2.7-5.4 | 22 | 1 | 1480 | 1000 | 1465 | 1400 | DN65 |
| KEL-22 VSD | 4.0 | 2.6-5.2 | 22 | 1 | 1480 | 1000 | 1465 | 1400 | DN65 |
| KEL-22 VSD | 5.0 | 2.5-5.0 | 22 | 1 | 1480 | 1000 | 1465 | 1400 | DN65 |
| KEL-30 | 1.5 | 13 | 30 | 1 | 1480 | 1100 | 1635 | 1400 | DN65 |
| KEL-30 | 2.0 | 11.8 | 30 | 1 | 1480 | 1100 | 1635 | 1400 | DN65 |
| KEL-30 | 3.0 | 8.6 | 30 | 1 | 1480 | 1100 | 1635 | 1400 | DN65 |
| KEL-30 | 4.0 | 6.8 | 30 | 1 | 1480 | 1100 | 1635 | 1400 | DN65 |
| KEL-30 | 5.0 | 6.2 | 30 | 1 | 1480 | 1100 | 1635 | 1400 | DN65 |
| KEL-30 VSD | 1.5 | 6.5-13.0 | 30 | 1 | 1480 | 1100 | 1635 | 1400 | DN65 |
| KEL-30 VSD | 2.0 | 5.9-11.8 | 30 | 1 | 1480 | 1100 | 1635 | 1400 | DN65 |
| KEL-30 VSD | 3.0 | 4.3-8.6 | 30 | 1 | 1480 | 1100 | 1635 | 1400 | DN65 |
| KEL-30 VSD | 4.0 | 3.4-6.8 | 30 | 1 | 1480 | 1100 | 1635 | 1400 | DN65 |
| KEL-30 VSD | 5.0 | 3.1-6.2 | 30 | 1 | 1480 | 1100 | 1635 | 1400 | DN65 |
| KEL-37 | 1.5 | 16.1 | 37 | 1 | 1850 | 1200 | 1650 | 1850 | DN65 |
| KEL-37 | 2.0 | 14.8 | 37 | 1 | 1850 | 1200 | 1650 | 1850 | DN65 |
| KEL-37 | 3.0 | 11 | 37 | 1 | 1850 | 1200 | 1650 | 1850 | DN65 |
| KEL-37 | 4.0 | 10 | 37 | 1 | 1850 | 1200 | 1650 | 1850 | DN65 |
| KEL-37 | 5.0 | 8.8 | 37 | 1 | 1850 | 1200 | 1650 | 1850 | DN65 |
| KEL-37 VSD | 1.5 | 8.1-16.1 | 37 | 1 | 1850 | 1200 | 1650 | 1850 | DN65 |
| KEL-37 VSD | 2.0 | 7.4-14.8 | 37 | 1 | 1850 | 1200 | 1650 | 1850 | DN65 |
| KEL-37 VSD | 3.0 | 5.5-11.0 | 37 | 1 | 1850 | 1200 | 1650 | 1850 | DN65 |
| KEL-37 VSD | 4.0 | 5.0-10.0 | 37 | 1 | 1850 | 1200 | 1650 | 1850 | DN65 |
| KEL-37 VSD | 5.0 | 4.4-8.8 | 37 | 1 | 1850 | 1200 | 1650 | 1850 | DN65 |
| KEL-45 | 1.5 | 20.2 | 45 | 1 | 2000 | 1350 | 1805 | 2070 | DN80 |
| KEL-45 | 2.0 | 18.9 | 45 | 1 | 2000 | 1350 | 1805 | 2070 | DN80 |
| KEL-45 | 3.0 | 14.2 | 45 | 1 | 2000 | 1350 | 1805 | 2070 | DN80 |
| KEL-45 | 4.0 | 11.8 | 45 | 1 | 2000 | 1350 | 1805 | 2070 | DN80 |
| KEL-45 | 5.0 | 11.8 | 45 | 1 | 2000 | 1350 | 1805 | 2070 | DN80 |
| KEL-45 VSD | 1.5 | 8.1-20.2 | 45 | 1 | 2000 | 1350 | 1805 | 2070 | DN80 |
| KEL-45 VSD | 2.0 | 7.6-18.9 | 45 | 1 | 2000 | 1350 | 1805 | 2070 | DN80 |
| KEL-45 VSD | 3.0 | 5.7-14.2 | 45 | 1 | 2000 | 1350 | 1805 | 2070 | DN80 |
| KEL-45 VSD | 4.0 | 4.7-11.8 | 45 | 1 | 2000 | 1350 | 1805 | 2070 | DN80 |
| KEL-45 VSD | 5.0 | 4.7-11.8 | 45 | 1 | 2000 | 1350 | 1805 | 2070 | DN80 |
| KEL-55 | 1.5 | 25.7 | 55 | 1 | 2320 | 1510 | 1970 | 2800 | DN80 |
| KEL-55 | 2.0 | 23.1 | 55 | 1 | 2320 | 1510 | 1970 | 2800 | DN80 |
| KEL-55 | 3.0 | 19.2 | 55 | 1 | 2320 | 1510 | 1970 | 2800 | DN80 |
| KEL-55 | 4.0 | 14.8 | 55 | 1 | 2320 | 1510 | 1970 | 2800 | DN80 |
| KEL-55 | 5.0 | 14.2 | 55 | 1 | 2320 | 1510 | 1970 | 2800 | DN80 |
| KEL-55 VSD | 1.5 | 10.3-25.7 | 55 | 1 | 2320 | 1510 | 1970 | 2800 | DN80 |
| KEL-55 VSD | 2.0 | 9.2-23.1 | 55 | 1 | 2320 | 1510 | 1970 | 2800 | DN80 |
| KEL-55 VSD | 3.0 | 7.7-19.2 | 55 | 1 | 2320 | 1510 | 1970 | 2800 | DN80 |
| KEL-55 VSD | 4.0 | 5.9-14.8 | 55 | 1 | 2320 | 1510 | 1970 | 2800 | DN80 |
| KEL-55 VSD | 5.0 | 5.7-14.2 | 55 | 1 | 2320 | 1510 | 1970 | 2800 | DN80 |
| KEL-75 | 1.5 | 35 | 75 | 1 | 2460 | 1680 | 2030 | 3200 | DN100 |
| KEL-75 | 2.0 | 31.5 | 75 | 1 | 2460 | 1680 | 2030 | 3200 | DN100 |
| KEL-75 | 3.0 | 23 | 75 | 1 | 2460 | 1680 | 2030 | 3200 | DN100 |
| KEL-75 | 4.0 | 20.6 | 75 | 1 | 2460 | 1680 | 2030 | 3200 | DN100 |
| KEL-75 | 5.0 | 18.5 | 75 | 1 | 2460 | 1680 | 2030 | 3200 | DN100 |
| KEL-75 VSD | 1.5 | 14.0-35.0 | 75 | 1 | 2460 | 1680 | 2030 | 3200 | DN100 |
| KEL-75 VSD | 2.0 | 12.6-31.5 | 75 | 1 | 2460 | 1680 | 2030 | 3200 | DN100 |
| KEL-75 VSD | 3.0 | 9.2-23.0 | 75 | 1 | 2460 | 1680 | 2030 | 3200 | DN100 |
| KEL-75 VSD | 4.0 | 8.2-20.6 | 75 | 1 | 2460 | 1680 | 2030 | 3200 | DN100 |
| KEL-75 VSD | 5.0 | 7.4-18.5 | 75 | 1 | 2460 | 1680 | 2030 | 3200 | DN100 |
| KEL-90 | 1.5 | 42 | 90 | 1 | 2160 | 1660 | 1900 | 3500 | DN125 |
| KEL-90 | 2.0 | 35.1 | 90 | 1 | 2160 | 1660 | 1900 | 3500 | DN125 |
| KEL-90 | 3.0 | 29.9 | 90 | 1 | 2160 | 1660 | 1900 | 3500 | DN125 |
| KEL-90 | 4.0 | 25.7 | 90 | 1 | 2160 | 1660 | 1900 | 3500 | DN125 |
| KEL-90 | 5.0 | 21.6 | 90 | 1 | 2160 | 1660 | 1900 | 3500 | DN125 |
| KEL-90 VSD | 1.5 | 16.8-42.0 | 90 | 1 | 2160 | 1660 | 1900 | 3500 | DN125 |
| KEL-90 VSD | 2.0 | 14.0-35.1 | 90 | 1 | 2160 | 1660 | 1900 | 3500 | DN125 |
| KEL-90 VSD | 3.0 | 12.0-29.9 | 90 | 1 | 2160 | 1660 | 1900 | 3500 | DN125 |
| KEL-90 VSD | 4.0 | 10.3-25.7 | 90 | 1 | 2160 | 1660 | 1900 | 3500 | DN125 |
| KEL-90 VSD | 5.0 | 8.6-21.6 | 90 | 1 | 2160 | 1660 | 1900 | 3500 | DN125 |
| KEL-110 | 1.5 | 53.4 | 110 | 1 | 2610 | 1660 | 1900 | 4200 | DN125 |
| KEL-110 | 2.0 | 43.3 | 110 | 1 | 2610 | 1660 | 1900 | 4200 | DN125 |
| KEL-110 | 3.0 | 35.1 | 110 | 1 | 2610 | 1660 | 1900 | 4200 | DN125 |
| KEL-110 | 4.0 | 30 | 110 | 1 | 2610 | 1660 | 1900 | 4200 | DN125 |
| KEL-110 | 5.0 | 26.2 | 110 | 1 | 2610 | 1660 | 1900 | 4200 | DN125 |
| KEL-110 VSD | 1.5 | 21.4-53.4 | 110 | 1 | 2610 | 1660 | 1900 | 4200 | DN125 |
| KEL-110 VSD | 2.0 | 17.3-43.3 | 110 | 1 | 2610 | 1660 | 1900 | 4200 | DN125 |
| KEL-110 VSD | 3.0 | 14.0-35.1 | 110 | 1 | 2610 | 1660 | 1900 | 4200 | DN125 |
| KEL-110 VSD | 4.0 | 12.0-30.0 | 110 | 1 | 2610 | 1660 | 1900 | 4200 | DN125 |
| KEL-110 VSD | 5.0 | 10.5-26.2 | 110 | 1 | 2610 | 1660 | 1900 | 4200 | DN125 |
| KEL-132 | 1.5 | 72.2 | 132 | 1 | 3730 | 2280 | 2700 | 6000 | DN200 |
| KEL-132 | 2.0 | 55.7 | 132 | 1 | 3730 | 2280 | 2700 | 6000 | DN200 |
| KEL-132 | 3.0 | 50 | 132 | 1 | 3730 | 2280 | 2700 | 6000 | DN200 |
| KEL-132 | 4.0 | 43.3 | 132 | 1 | 3730 | 2280 | 2700 | 6000 | DN200 |
| KEL-132 | 5.0 | 32.2 | 132 | 1 | 3730 | 2280 | 2700 | 6000 | DN200 |
| KEL-132 VSD | 1.5 | 28.9-72.2 | 132 | 1 | 3730 | 2280 | 2700 | 6000 | DN200 |
| KEL-132 VSD | 2.0 | 22.3-55.7 | 132 | 1 | 3730 | 2280 | 2700 | 6000 | DN200 |
| KEL-132 VSD | 3.0 | 20.0-50.0 | 132 | 1 | 3730 | 2280 | 2700 | 6000 | DN200 |
| KEL-132 VSD | 4.0 | 17.3-43.3 | 132 | 1 | 3730 | 2280 | 2700 | 6000 | DN200 |
| KEL-132 VSD | 5.0 | 12.9-32.2 | 132 | 1 | 3730 | 2280 | 2700 | 6000 | DN200 |
| KEL-160 | 1.5 | 77.6 | 160 | 1 | 3380 | 2280 | 2420 | 6100 | DN150 |
| KEL-160 | 2.0 | 69.7 | 160 | 1 | 3380 | 2280 | 2420 | 6100 | DN150 |
| KEL-160 | 3.0 | 56.4 | 160 | 1 | 3380 | 2280 | 2420 | 6100 | DN150 |
| KEL-160 | 4.0 | 46.4 | 160 | 1 | 3380 | 2280 | 2420 | 6100 | DN150 |
| KEL-160 | 5.0 | 39.1 | 160 | 1 | 3380 | 2280 | 2420 | 6100 | DN150 |
| KEL-160 VSD | 1.5 | 31.0-77.6 | 160 | 1 | 3380 | 2280 | 2420 | 6100 | DN150 |
| KEL-160 VSD | 2.0 | 27.9-69.7 | 160 | 1 | 3380 | 2280 | 2420 | 6100 | DN150 |
| KEL-160 VSD | 3.0 | 22.6-56.4 | 160 | 1 | 3380 | 2280 | 2420 | 6100 | DN150 |
| KEL-160 VSD | 4.0 | 18.6-46.4 | 160 | 1 | 3380 | 2280 | 2420 | 6100 | DN150 |
| KEL-160 VSD | 5.0 | 15.6-39.1 | 160 | 1 | 3380 | 2280 | 2420 | 6100 | DN150 |
| KEL-185 | 3.0 | 59.8 | 185 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-185 | 4.0 | 49 | 185 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-185 | 5.0 | 40.6 | 185 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-185 VSD | 3.0 | 23.9-59.8 | 185 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-185 VSD | 4.0 | 19.6-49.0 | 185 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-185 VSD | 5.0 | 16.2-40.6 | 185 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-200 | 3.0 | 64.4 | 200 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-200 | 4.0 | 53.6 | 200 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-200 | 5.0 | 43.3 | 200 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-200 VSD | 3.0 | 25.8-64.4 | 200 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-200 VSD | 4.0 | 21.4-53.6 | 200 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-200 VSD | 5.0 | 17.3-43.3 | 200 | 1 | 4250 | 2180 | 2230 | 6100 | DN150 |
| KEL-220 | 3.0 | 70.1 | 220 | 1 | 4600 | 2180 | 2230 | 7200 | DN250 |
| KEL-220 | 4.0 | 56.7 | 220 | 1 | 4600 | 2180 | 2230 | 7200 | DN250 |
| KEL-220 | 5.0 | 46.4 | 220 | 1 | 4600 | 2180 | 2230 | 7200 | DN250 |
| KEL-220 VSD | 3.0 | 28.0-70.1 | 220 | 1 | 4600 | 2180 | 2230 | 7200 | DN250 |
| KEL-220 VSD | 4.0 | 22.7-56.7 | 220 | 1 | 4600 | 2180 | 2230 | 7200 | DN250 |
| KEL-220 VSD | 5.0 | 18.6-46.4 | 220 | 1 | 4600 | 2180 | 2230 | 7200 | DN250 |

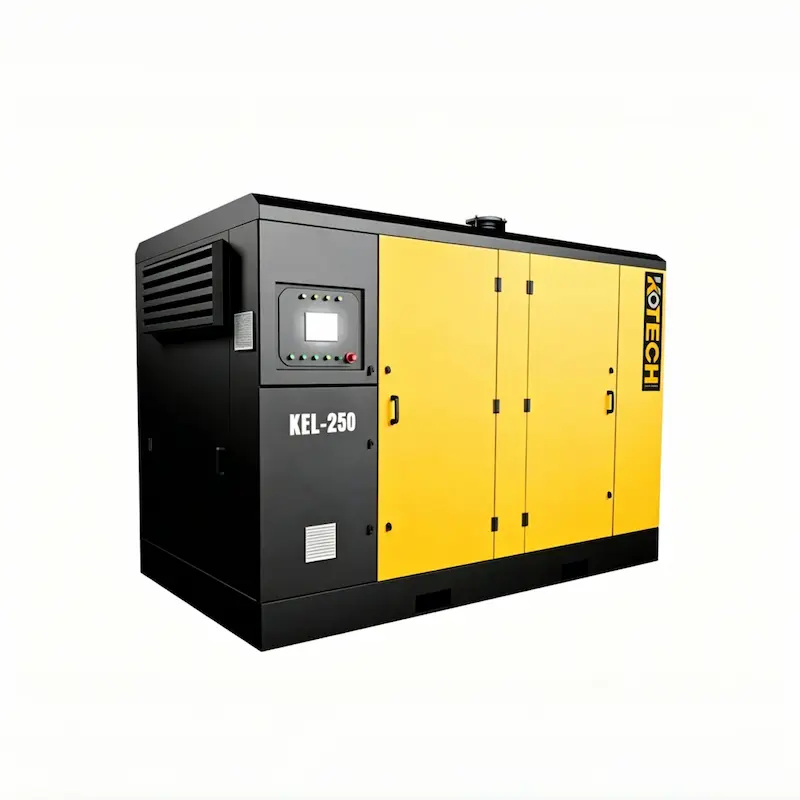

| KEL-250 | 3.0 | 78.4 | 250 | 1 | 5300 | 2180 | 2230 | 8500 | DN250 |
| KEL-250 | 4.0 | 64.9 | 250 | 1 | 5300 | 2180 | 2230 | 8500 | DN250 |
| KEL-250 | 5.0 | 53.6 | 250 | 1 | 5300 | 2180 | 2230 | 8500 | DN250 |
| KEL-250 VSD | 3.0 | 31.4-78.4 | 250 | 1 | 5300 | 2180 | 2230 | 8500 | DN250 |
| KEL-250 VSD | 4.0 | 26.0-64.9 | 250 | 1 | 5300 | 2180 | 2230 | 8500 | DN250 |
| KEL-250 VSD | 5.0 | 21.4-53.6 | 250 | 1 | 5300 | 2180 | 2230 | 8500 | DN250 |
| KEL-280 | 4.0 | 70.6 | 280 | 1 | 5300 | 2180 | 2230 | 8500 | DN200 |
| KEL-280 | 5.0 | 61.9 | 280 | 1 | 5300 | 2180 | 2230 | 8500 | DN200 |
| KEL-280 VSD | 4.0 | 28.2-70.6 | 280 | 1 | 5300 | 2180 | 2230 | 8500 | DN200 |
| KEL-280 VSD | 5.0 | 24.8-61.9 | 280 | 1 | 5300 | 2180 | 2230 | 8500 | DN200 |
| KEL-315 | 5.0 | 66.8 | 315 | 1 | 5300 | 2180 | 2230 | 10000 | DN200 |
| KEL-315 VSD | 5.0 | 26.7-66.8 | 315 | 1 | 5300 | 2180 | 2230 | 10000 | DN200 |
| KEL-355 | 5.0 | 75.2 | 355 | 1 | 5300 | 2180 | 2230 | 10000 | DN200 |
| KEL-355 VSD | 5.0 | 30.1-75.2 | 355 | 1 | 5300 | 2180 | 2230 | 10000 | DN200 |
| KEL-22II | 4.5 | 6.5 | 22 | 2 | 1700 | 1100 | 1500 | 1200 | G2 |
| KEL-22II | 5.5 | 5.7 | 22 | 2 | 1700 | 1100 | 1500 | 1200 | G2 |
| KEL-22II VSD | 4.5 | 3.3-6.5 | 22 | 2 | 1700 | 1100 | 1500 | 1200 | G2 |
| KEL-22II VSD | 5.5 | 2.9-5.7 | 22 | 2 | 1700 | 1100 | 1500 | 1200 | G2 |
| KEL-30II | 4.5 | 8.8 | 30 | 2 | 1800 | 1150 | 1500 | 1350 | G2 |
| KEL-30II | 5.5 | 7.6 | 30 | 2 | 1800 | 1150 | 1500 | 1350 | G2 |
| KEL-30II VSD | 4.5 | 4.4-8.8 | 30 | 2 | 1800 | 1150 | 1500 | 1350 | G2 |
| KEL-30II VSD | 5.5 | 3.8-7.6 | 30 | 2 | 1800 | 1150 | 1500 | 1350 | G2 |
| KEL-37II | 4.5 | 9.7 | 37 | 2 | 2180 | 1350 | 1700 | 1450 | DN65 |
| KEL-37II | 5.5 | 9.3 | 37 | 2 | 2180 | 1350 | 1700 | 1450 | DN65 |
| KEL-37II VSD | 4.5 | 4.9-9.7 | 37 | 2 | 2180 | 1350 | 1700 | 1450 | DN65 |
| KEL-37II VSD | 5.5 | 4.7-9.3 | 37 | 2 | 2180 | 1350 | 1700 | 1450 | DN65 |
| KEL-45II | 4.5 | 11.8 | 45 | 2 | 2180 | 1350 | 1700 | 2300 | DN65 |
| KEL-45II | 5.5 | 11.1 | 45 | 2 | 2180 | 1350 | 1700 | 2300 | DN65 |
| KEL-45II VSD | 4.5 | 4.7-11.8 | 45 | 2 | 2180 | 1350 | 1700 | 2300 | DN65 |
| KEL-45II VSD | 5.5 | 4.4-11.1 | 45 | 2 | 2180 | 1350 | 1700 | 2300 | DN65 |
| KEL-55II | 4.5 | 14.5 | 55 | 2 | 2450 | 1510 | 1970 | 2400 | DN65 |
| KEL-55II | 5.5 | 13.8 | 55 | 2 | 2450 | 1510 | 1970 | 2400 | DN65 |
| KEL-55II VSD | 4.5 | 5.8-14.5 | 55 | 2 | 2450 | 1510 | 1970 | 2400 | DN65 |
| KEL-55II VSD | 5.5 | 5.5-13.8 | 55 | 2 | 2450 | 1510 | 1970 | 2400 | DN65 |
| KEL-75II | 4.5 | 21 | 75 | 2 | 2900 | 1800 | 2150 | 3200 | DN80 |
| KEL-75II | 5.5 | 19.9 | 75 | 2 | 2900 | 1800 | 2150 | 3200 | DN80 |
| KEL-75II VSD | 4.5 | 8.4-21.0 | 75 | 2 | 2900 | 1800 | 2150 | 3200 | DN80 |
| KEL-75II VSD | 5.5 | 8.0-19.9 | 75 | 2 | 2900 | 1800 | 2150 | 3200 | DN80 |
| KEL-90II | 4.5 | 26.4 | 90 | 2 | 2980 | 1880 | 2200 | 4000 | DN80 |
| KEL-90II | 5.5 | 23.7 | 90 | 2 | 2980 | 1880 | 2200 | 4000 | DN80 |
| KEL-90II VSD | 4.5 | 10.6-26.4 | 90 | 2 | 2980 | 1880 | 2200 | 4000 | DN80 |
| KEL-90II VSD | 5.5 | 9.5-23.7 | 90 | 2 | 2980 | 1880 | 2200 | 4000 | DN80 |
| KEL-110II | 4.5 | 30.6 | 110 | 2 | 3300 | 2090 | 2380 | 4000 | DN100 |
| KEL-110II | 5.5 | 29.3 | 110 | 2 | 3300 | 2090 | 2380 | 4000 | DN100 |
| KEL-110II VSD | 4.5 | 12.2-30.6 | 110 | 2 | 3300 | 2090 | 2380 | 4000 | DN100 |
| KEL-110II VSD | 5.5 | 11.7-29.3 | 110 | 2 | 3300 | 2090 | 2380 | 4000 | DN100 |
| KEL-132II | 4.5 | 38.9 | 132 | 2 | 3300 | 2090 | 2380 | 5000 | DN125 |
| KEL-132II | 5.5 | 34.5 | 132 | 2 | 3300 | 2090 | 2380 | 5000 | DN125 |
| KEL-132II VSD | 4.5 | 15.6-38.9 | 132 | 2 | 3300 | 2090 | 2380 | 5000 | DN125 |
| KEL-132II VSD | 5.5 | 13.8-34.5 | 132 | 2 | 3300 | 2090 | 2380 | 5000 | DN125 |
| KEL-160II | 4.5 | 45.5 | 160 | 2 | 3750 | 2180 | 2400 | 6000 | DN150 |
| KEL-160II | 5.5 | 43.5 | 160 | 2 | 3750 | 2180 | 2400 | 6000 | DN150 |
| KEL-160II VSD | 4.5 | 18.2-45.5 | 160 | 2 | 3750 | 2180 | 2400 | 6000 | DN150 |
| KEL-160II VSD | 5.5 | 17.4-43.5 | 160 | 2 | 3750 | 2180 | 2400 | 6000 | DN150 |
| KEL-185II | 4.5 | 52 | 185 | 2 | 3900 | 2280 | 2550 | 6500 | DN150 |
| KEL-185II | 5.5 | 51.1 | 185 | 2 | 3900 | 2280 | 2550 | 6500 | DN150 |
| KEL-185II VSD | 4.5 | 20.8-52.0 | 185 | 2 | 3900 | 2280 | 2550 | 6500 | DN150 |
| KEL-185II VSD | 5.5 | 20.4-51.1 | 185 | 2 | 3900 | 2280 | 2550 | 6500 | DN150 |
| KEL-200II | 4.5 | 56.2 | 200 | 2 | 3900 | 2280 | 2550 | 6500 | DN200 |
| KEL-200II | 5.5 | 55 | 200 | 2 | 3900 | 2280 | 2550 | 6500 | DN200 |
| KEL-200II VSD | 4.5 | 22.5-56.2 | 200 | 2 | 3900 | 2280 | 2550 | 6500 | DN200 |
| KEL-200II VSD | 5.5 | 22.0-55.0 | 200 | 2 | 3900 | 2280 | 2550 | 6500 | DN200 |
| KEL-220II | 4.5 | 61.5 | 220 | 2 | 4200 | 2280 | 2650 | 8000 | DN200 |
| KEL-220II | 5.5 | 60.4 | 220 | 2 | 4200 | 2280 | 2650 | 8000 | DN200 |
| KEL-220II VSD | 4.5 | 24.6-61.5 | 220 | 2 | 4200 | 2280 | 2650 | 8000 | DN200 |
| KEL-220II VSD | 5.5 | 24.2-60.4 | 220 | 2 | 4200 | 2280 | 2650 | 8000 | DN200 |
| KEL-250II | 4.5 | 69 | 250 | 2 | 4200 | 2280 | 2650 | 9000 | DN200 |
| KEL-250II | 5.5 | 67.9 | 250 | 2 | 4200 | 2280 | 2650 | 9000 | DN200 |
| KEL-250II VSD | 4.5 | 27.6-69.0 | 250 | 2 | 4200 | 2280 | 2650 | 9000 | DN200 |
| KEL-250II VSD | 5.5 | 27.2-67.9 | 250 | 2 | 4200 | 2280 | 2650 | 9000 | DN200 |
| KEL-280II | 4.5 | 77.7 | 280 | 2 | 5000 | 2400 | 2780 | 10000 | DN250 |
| KEL-280II | 5.5 | 76.5 | 280 | 2 | 5000 | 2400 | 2780 | 10000 | DN250 |
| KEL-280II VSD | 4.5 | 31.1-77.7 | 280 | 2 | 5000 | 2400 | 2780 | 10000 | DN250 |
| KEL-280II VSD | 5.5 | 30.6-76.5 | 280 | 2 | 5000 | 2400 | 2780 | 10000 | DN250 |
Have Questions? Contact Us
Fill out the form below and we'll get back to you within 24 hours.
Frequently Asked Questions
Using a standard compressor and reducing the pressure to 2 or 3 bar wastes significant energy. The KEL series is specifically engineered for 1.5-5 bar, allowing for larger air discharge with much lower power consumption, saving you up to 30% or more on energy bills.
The KEL series is optimized to deliver stable compressed air within the 1.5 bar to 5 bar (21-72 PSI) range. This ensures the highest volumetric efficiency for industries that do not require high-pressure air.
This series is ideal for textile manufacturing (weaving/spinning), cement conveying, glass bottle production, chemical fiber processing, and wastewater treatment aeration, where high volume and low pressure are required.
By utilizing an optimized screw airend designed for low-pressure ratios, the KEL series can provide a much larger air delivery (m³/min) than a standard compressor of the same motor power, perfectly meeting the demand for high-volume air.
Yes. Like all Kotech industrial units, the KEL series features a heavy-duty design with superior cooling systems and high-quality bearings, ensuring 100% duty cycle and maximum reliability in harsh factory environments.
No. The maintenance procedures are similar to standard screw compressors. However, because it operates at lower pressure, the internal stress on components is reduced, which often leads to a longer service life for seals and bearings.
Certainly. We offer various motor powers and configurations. Our engineers can help you calculate the exact pressure and flow requirements for your specific production line to ensure the highest possible ROI.
