ISO Class 0 Oil-Free Scroll Air Compressor: Ultra-Silent & Maintenance-Free for Medical & Lab Use
The KUW Series scroll compressor delivers certified ISO Class 0 oil-free air, specifically engineered for medical, laboratory, and food grade applications. Its innovative scroll technology ensures vibration-free operation and extreme silence, making it perfect for point-of-use installation.
Tell us your required pressure and application. Our technical team will provide a tailored KUW configuration and pricing within 24 hours.
- Working pressure range
- 7-10 bar
- Air delivery range
- 140-4100 L/min
- Power rate coverage
- 1.5-37 kW
- Operational noise level
- < 59 dB(A)
- Minimum installation footprint
- 0.3 ㎡
- Maintenance-free interval
- 10,000 Hours
- 100% oil-free certified purity
- ISO Class 0
- Energy-saving compression design
- Scroll Tech
Why KUW Series is the Top Choice for Sensitive Industries
Built for environments where air purity is non-negotiable. The KUW series combines 100% oil-free technology with a whisper-quiet design, providing a reliable, long-term solution that lowers your operational costs and protects your production quality.
Challenges in High-Purity Compressed Air Procurement
- Risk of product contamination due to oil carryover in standard compressors.
- Excessive noise levels disrupting laboratory or medical environments.
- Frequent and costly maintenance downtime affecting production stability.
- Bulky equipment sizes that are difficult to integrate into tight spaces.
How KUW Series Solves Your Air Quality Concerns
- Guaranteed oil-free compression eliminates the risk of batch contamination.
- Advanced soundproofing and scroll tech allow for ultra-quiet indoor use.
- Maintenance-free design reduces TCO and maximizes operational uptime.
- Space-saving vertical layout allows for easy integration in any facility.
Targeted Applications for KUW Series
From sterile medical environments to precision manufacturing, the KUW Series provides the specialized air quality required to meet international safety and hygiene standards.
Compressed air purity is crucial for many industry sectors, such as medical, research and biotechnology.

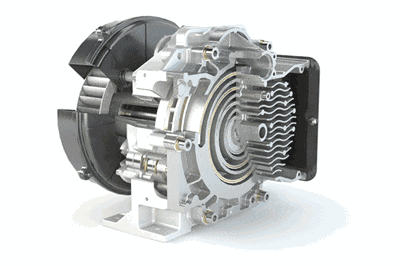

[caption id="attachment_468" align="aligncenter" width="400"]
KUW Series Oil-Free Scroll Compressor[/caption]
A scroll air compressor is described as a scroll pump or a scroll vacuum cleaner pump.The design of rotary scroll head creates a continuous compressed air delivery during multiple stages and there is no need oil for lubrication during compression.
A scroll air compressed system runs much quieter and more efficiently than the reciprocating oil free air compressor since there are just 2 moving components in the scroll head – a fixed scroll and an orbital scroll.
Less moving components make the scroll air compressor more energy saving, more reliable running, and less mechanical failure during running. Compared to a rotary screw air compressor, a scroll air compressor is with less vibritions and much less noise.
Oil Free Scroll Air Compressor Features
All oil-free, compact, low noise, energy saving, durable (compared to piston compressor and screw compressor)

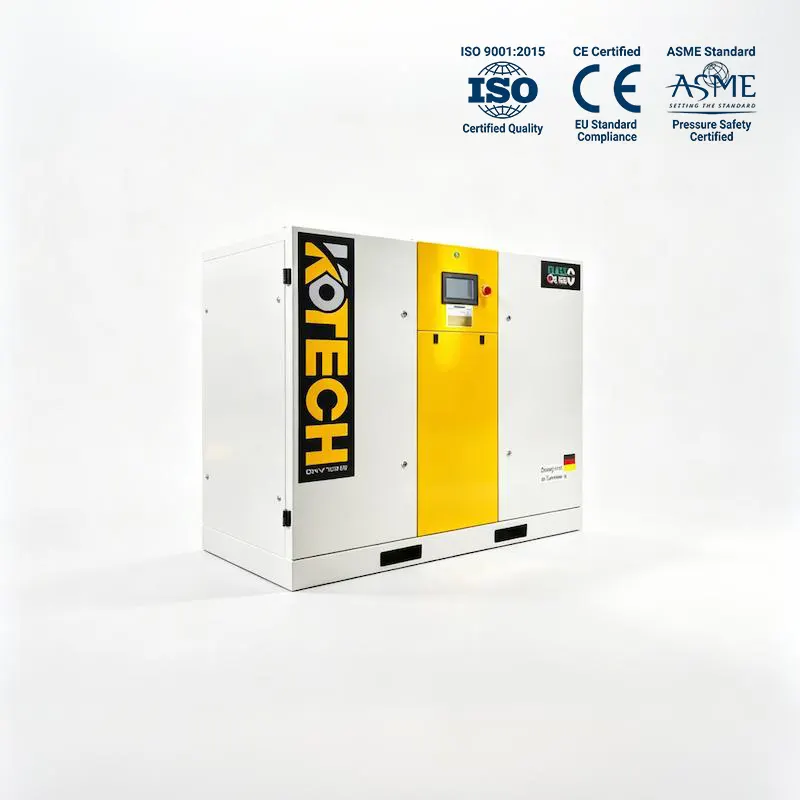

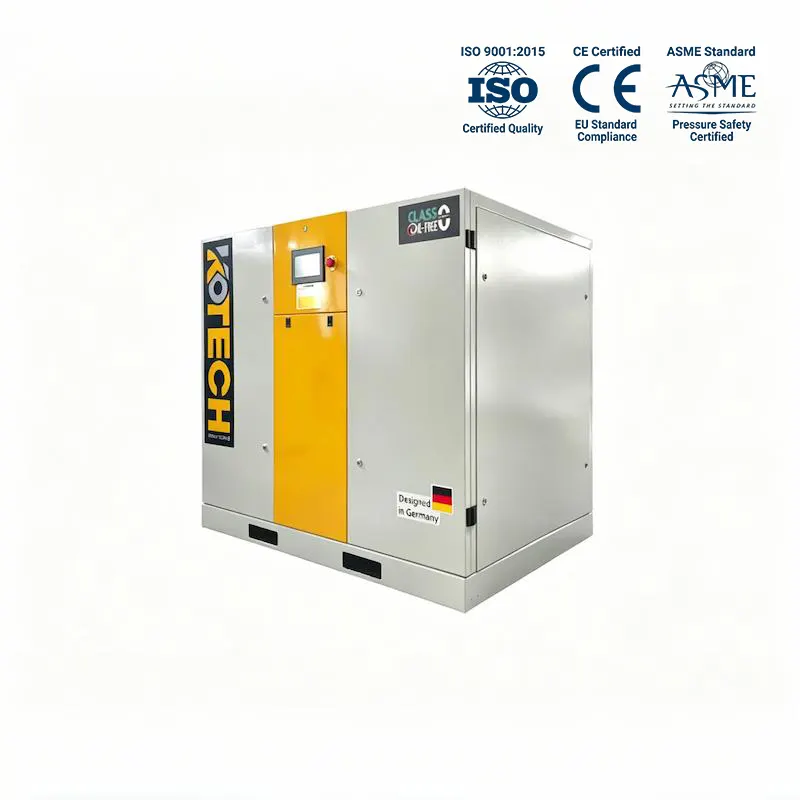

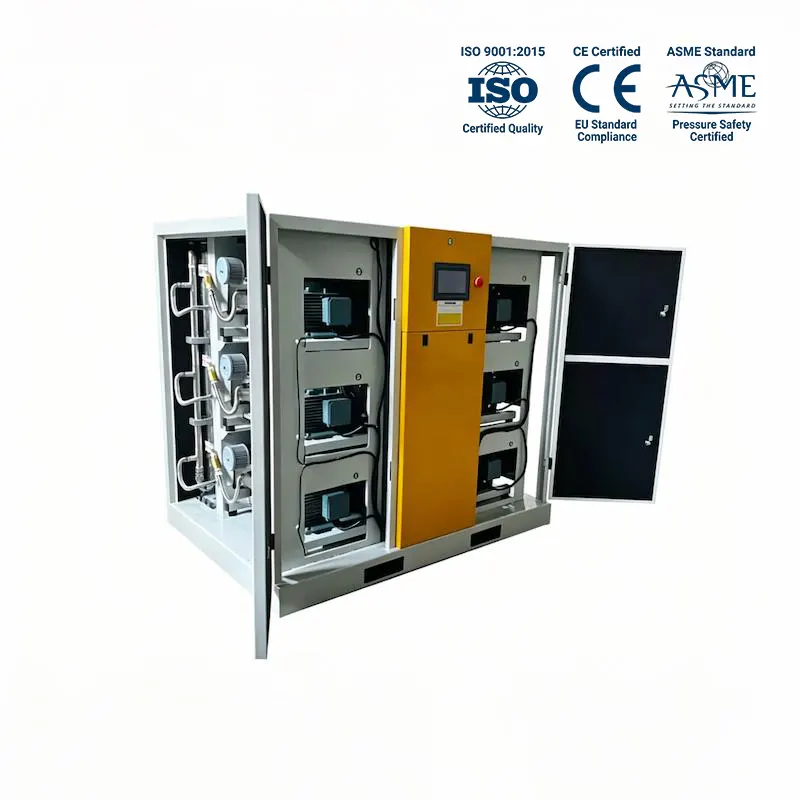

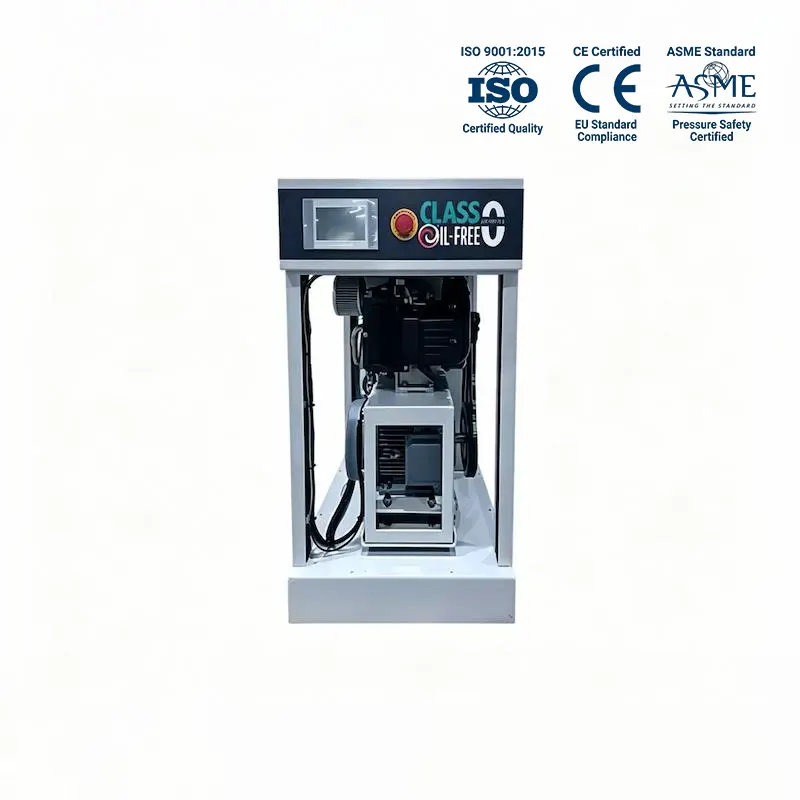

Oil Free Scroll Air Compressor Show
Oil-free Scroll Air Compressor Advantages
- TÜV certification, exhaust ISO-8573-1 Class 0 oil-free;
- Modular, high-precision, high-stability oil-free main engine;
- Maintenance-free, the maintenance intervals is for up to 10,000 hours;
- Running noise is less than 59dB, extremely silent;
- Compact size, covering an area of only 0.3 square meters;
- Built-in 40L automatic drain stainless steel gas storage tank with pressure vessel certificate;
- Pipes and joints are made of stainless steel or aluminum alloy;
- Optional integrated post-processing equipment, the gas supply reaches the level of medical clean gas;
- 220V single phase power supply is optional (only power below 1.5kW).
KUW Series Oil-Free Scroll Compressor Specifications
Use this technical table for accurate model comparison and engineering planning. Our KUW series ranges from 1.5kW to 37kW to meet diverse air delivery requirements. For detailed dimensions of integrated systems or custom voltage requirements, please contact our technical support team.
| Model | Motor Power-kW/HP | Voltage | Air Delivery-L/min | Exhaust Pressure-MPA | Exhaust Pressure-bar | Control Method | Speed-r/min | Output pipe diameter | Air Tank-L | Dimension(mm)-L | Dimension(mm)-W | Dimension(mm)-H | Weight-kg | Noise-dB(A) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KUW-1.5-8 | 1.5/2 | 220V/380V 50HZ/60HZ | 140 | 0.8 | 8 | Automatic Control | 2800 | RC1/2 | / | 540 | 540 | 770 | 110 | 51±3 |
| KUW-1.5CT-8 | 1.5/2 | 220V/380V 50HZ/60HZ | 140 | 0.8 | 8 | Automatic Control | 2800 | RC1/2 | 40 | 540 | 540 | 1190 | 160 | 51±3 |
| KUW-1.5ST-8 | 1.5/2 | 220V/380V 50HZ/60HZ | 140 | 0.8 | 8 | Automatic Control | 2800 | RC1/2 | 40 | 540 | 540 | 1190 | 180 | 51±3 |
| KUW-2.2-8 | 2.2/3 | 220V/380V 50HZ/60HZ | 240 | 0.8 | 8 | Automatic Control | 3000 | RC1/2 | / | 540 | 540 | 770 | 115 | 53±3 |
| KUW-2.2CT-8 | 2.2/3 | 220V/380V 50HZ/60HZ | 240 | 0.8 | 8 | Automatic Control | 3000 | RC1/2 | 40 | 540 | 540 | 1190 | 165 | 53±3 |
| KUW-2.2ST-8 | 2.2/3 | 220V/380V 50HZ/60HZ | 240 | 0.8 | 8 | Automatic Control | 3000 | RC1/2 | 40 | 540 | 540 | 1190 | 180 | 53±3 |
| KUW-3.7-8 | 3.7/5 | 220V/380V 50HZ/60HZ | 410 | 0.8 | 8 | Automatic Control | 3200 | RC1/2 | / | 540 | 540 | 770 | 120 | 55±3 |
| KUW-3.7CT-8 | 3.7/5 | 220V/380V 50HZ/60HZ | 410 | 0.8 | 8 | Automatic Control | 3200 | RC1/2 | 40 | 540 | 540 | 1190 | 170 | 55±3 |
| KUW-3.7ST-8 | 3.7/5 | 220V/380V 50HZ/60HZ | 410 | 0.8 | 8 | Automatic Control | 3200 | RC1/2 | 40 | 540 | 540 | 1190 | 190 | 55±3 |
| KUW7.5-8A | 7.5/10 | 380V 50HZ/60HZ | 820 | 0.8 | 8 | Automatic Control | 3200 | RC3/4 | / | 1235 | 680 | 1010 | 227 | 60±3 |
| KUW11-8A | 11/15 | 380V 50HZ/60HZ | 1230 | 0.8 | 8 | Automatic Control | 3200 | RC1 | / | 1235 | 740 | 1270 | 459 | 61±3 |
| KUW15-8A | 15/20 | 380V 50HZ/60HZ | 1640 | 0.8 | 8 | Automatic Control | 3200 | RC1 | / | 1235 | 740 | 1630 | 585 | 62±3 |
| KUW18.5-8A | 18.5/25 | 380V 50HZ/60HZ | 2050 | 0.8 | 8 | Automatic Control | 3200 | RC1/2 | / | 1235 | 740 | 1990 | 734 | 62±3 |
| KUW22-8A | 22/30 | 380V 50HZ/60HZ | 2460 | 0.8 | 8 | Automatic Control | 3200 | RC1/2 | / | 1580 | 1235 | 1630 | 910 | 60±3 |
| KUW30-8A | 30/40 | 380V 50HZ/60HZ | 3280 | 0.8 | 8 | Automatic Control | 3200 | RC1/2 | / | 1580 | 1235 | 1630 | 910 | 61±3 |
| KUW37-8A | 37/50 | 380V 50HZ/60HZ | 4100 | 0.8 | 8 | Automatic Control | 3200 | RC1/2 | / | 1580 | 1235 | 1990 | 910 | 62±3 |
Have Questions? Contact Us
Fill out the form below and we'll get back to you within 24 hours.
Frequently Asked Questions
For sensitive sectors like pharmaceutical, food & beverage, and medical, even a tiny drop of oil can cause product contamination or equipment damage. Our KUW series is TÜV certified for ISO 8573-1 Class 0, ensuring 100% oil-free air for your most critical processes.
The KUW series operates at noise levels as low as 59dB—quieter than a standard office conversation. Unlike noisy piston compressors, our scroll technology allows for installation directly in laboratories or clinics without the need for a separate soundproof room.
Scroll compressors have only two moving parts—a fixed and an orbiting scroll. With fewer mechanical components, there is significantly less friction, vibration, and wear, leading to higher reliability and a much lower risk of mechanical failure.
One of the biggest advantages of the KUW series is its low maintenance requirement. The system is designed for long service intervals, with maintenance-free periods lasting up to 10,000 hours, significantly reducing your total cost of ownership (TCO).
Yes, select models include a built-in 40L stainless steel gas storage tank. We use stainless steel or aluminum alloy for pipes and joints to prevent rust, ensuring that the high-purity air remains clean from the compressor to your point of use.
Absolutely. The KUW series features a compact modular design, covering an area as small as 0.3 square meters. Its vertical, space-saving footprint makes it an ideal choice for facilities where floor space is at a premium.
Yes. We offer optional integrated post-processing equipment (dryers and filters) to ensure the air reaches medical-grade purity. We also provide different voltage options, such as 220V single-phase for smaller units, to match your facility's power supply.
