High-Efficiency Mobile LED Light Tower | Solar / Diesel Dual-Power
Engineered for harsh field environments, Kotech mobile LED light towers offer diesel‑dual‑power and solar options. Lightweight and compact for easy transport and storage, diesel models feature large‑capacity tanks, high‑output engines and noise‑reduction for quiet operation. Solar units are equipped with compact trailers and fixed‑brightness LED lamps, ideal for construction, mining, oil & gas and outdoor job sites.
Click the button to consult, and we will provide a fast quotation within 3 hours
Functional Configuration
- Optional built‑in battery
- keeps running amid power cuts, low fuel and cloudy days.
Air-cooled engines can be selected from Chinese brands, Kohler, Yanmar, and Kubota;
Water-cooled engines can be chosen from Perkins, Yanmar, Kubota, and Chinese brands.
Fuel Consumption vs Standard 30% Less
Performance Parameters
- Max Mast Extended Height
- 8 Meters
- Heavy-Gauge Steel Fuel Tank
- 100 Liters
- Mobile Lighting Towers Lumens
- 64000(lm) Lumens-440,000 Lumens
- Manual or Electric Mast Rotation
- 360°
- LED Lamp Service Life
- 50,000 Hrs
- Auxiliary Power Output Sockets
- 2x16A
- Operational Temperature Range
- -25℃-55℃
Why Choose KLT Series Mobile Lighting Towers?
Common Obstacles in Outdoor Lighting Projects
- Frequent refueling stops disrupting 24/7 night-shift operations.
- Equipment failure caused by extreme dust, heat, or corrosive environments.
- High transportation costs due to bulky and non-compact machine designs.
- Poor illumination coverage leading to safety hazards on job sites.
- Remote‑area pain points: fuel scarcity & high fuel expenses
How KLT Series Eliminates Your Operational Risks
- 100L large fuel tank ensures extended runtime with fewer refueling intervals.
- Anti-corrosion canopy and wind-resistant structure built for -25°C to 55°C.
- Foldable mast and optimized footprint for efficient multi-unit container shipping.
- Adjustable high-lumen LED clusters provide shadow-free, 360° safety lighting.
- Solar‑Diesel Dual‑Power for Lower Energy Expenses
Main Application Industries of Mobile Light Towers

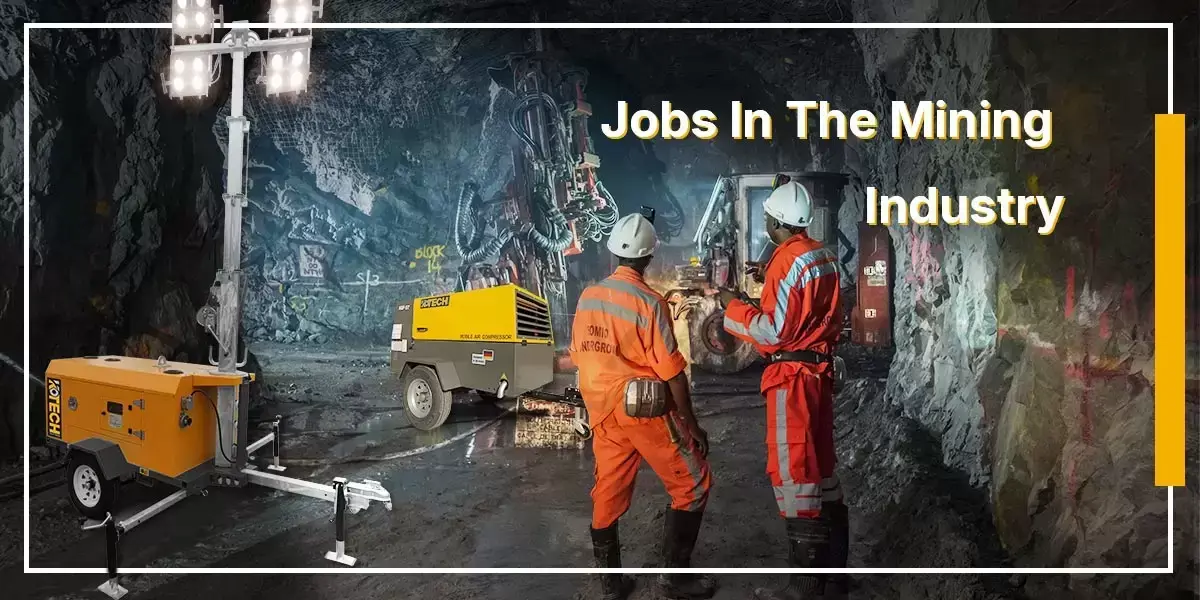

Tower Lights for Construction and Mining …

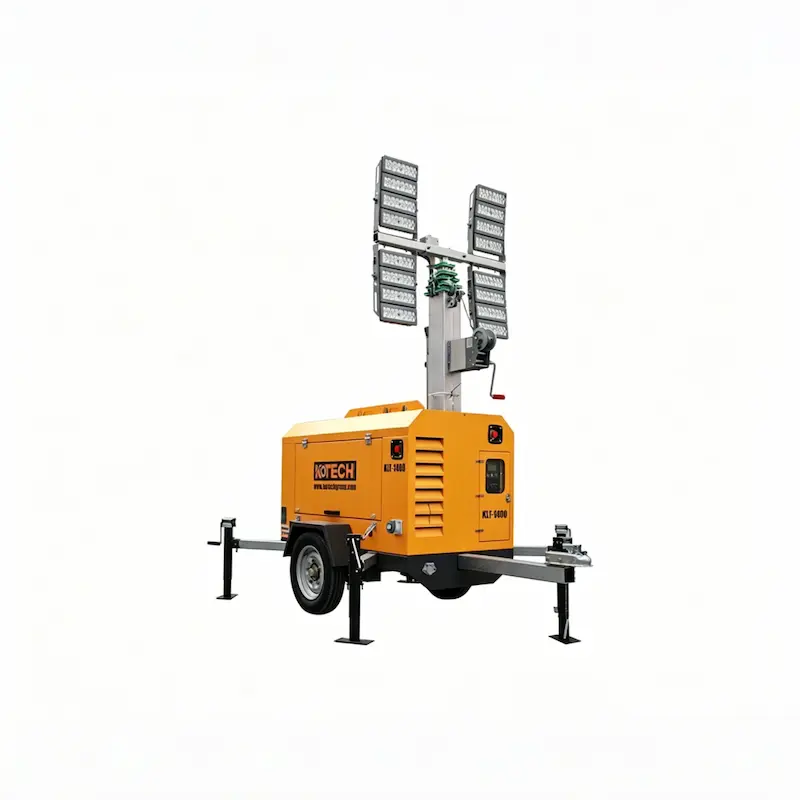

The light tower with manual vertical adjustment is the hot-selling model in the market, featuring friendly operation and easy transportation. Customized accordingly, it comes with a compact canopy and can be transported easily.
Customised Configurations
Air-cooled engines can be selected from Chinese brands, Kohler, Yanmar, and Kubota;
Water-cooled engines can be chosen from Perkins, Yanmar, Kubota, and Chinese brands.
Easy to handle and transport
Portable diesel light towers are easy to operate, transport, and adapt to challenging environments and terrain.
24/7 Support
Kotech’s professional after-sales team provides LED (LED safety feature) & Metal Halide mobile light tower service 24 hours a day.

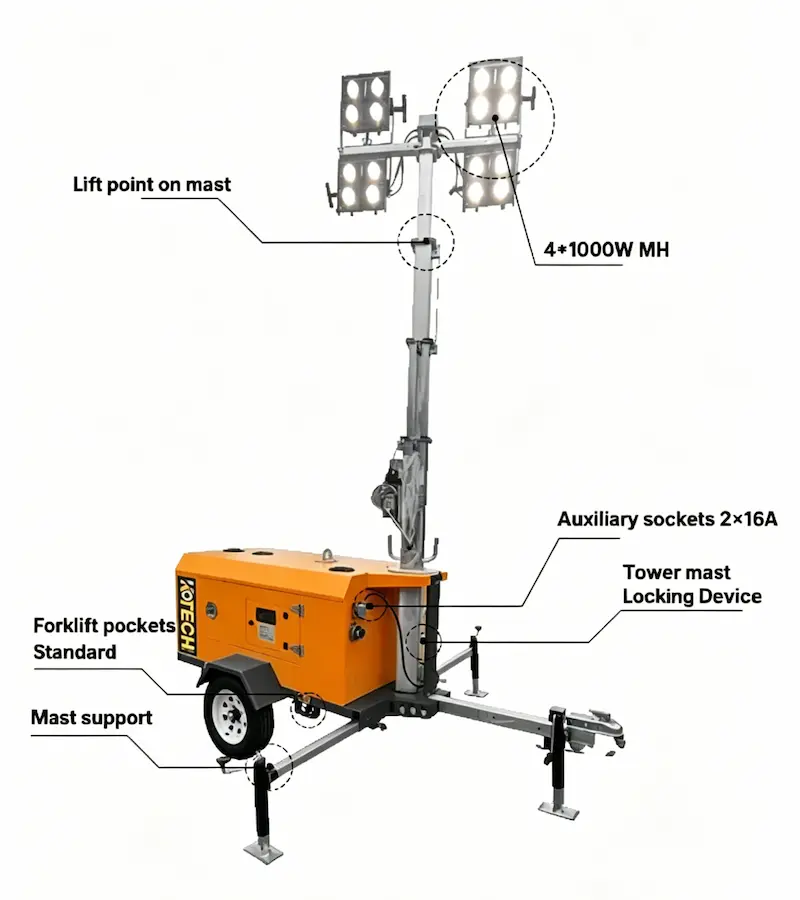

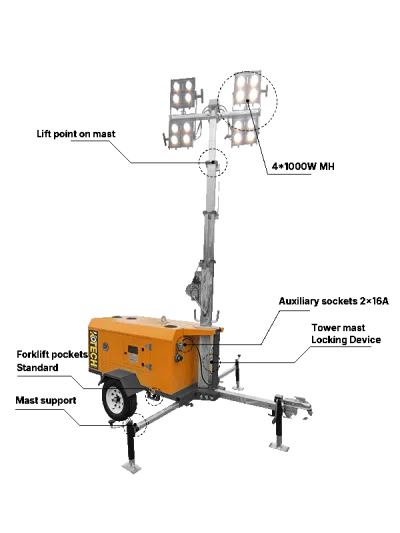

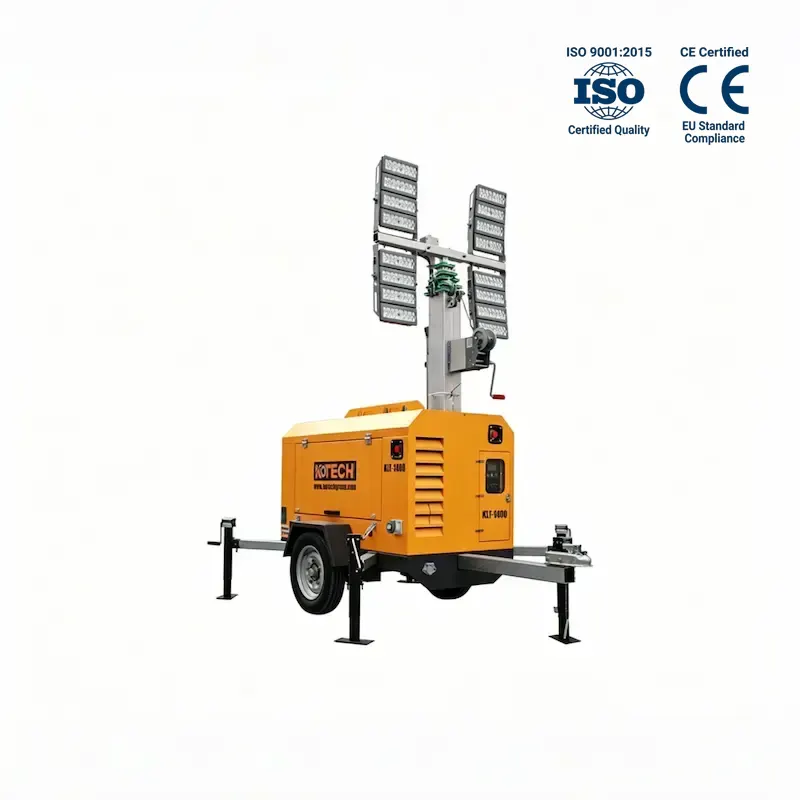

Light Tower Main Features:
- 4*350W LED | 4*1000W Metal halide | Customized
- Mast Rotation 360° (manual)
- Vertical Telescoping Multi Sections Mast
- Mast height 8M / Retracted 2.52M
- Auxiliary sockets 2x16A
- Wheels 185R/14″ or 165R13″
- Forklift pockets Standard
- Central lift point
- Tail light connector
- Tower mast Locking Device
- Fuel tank 100L

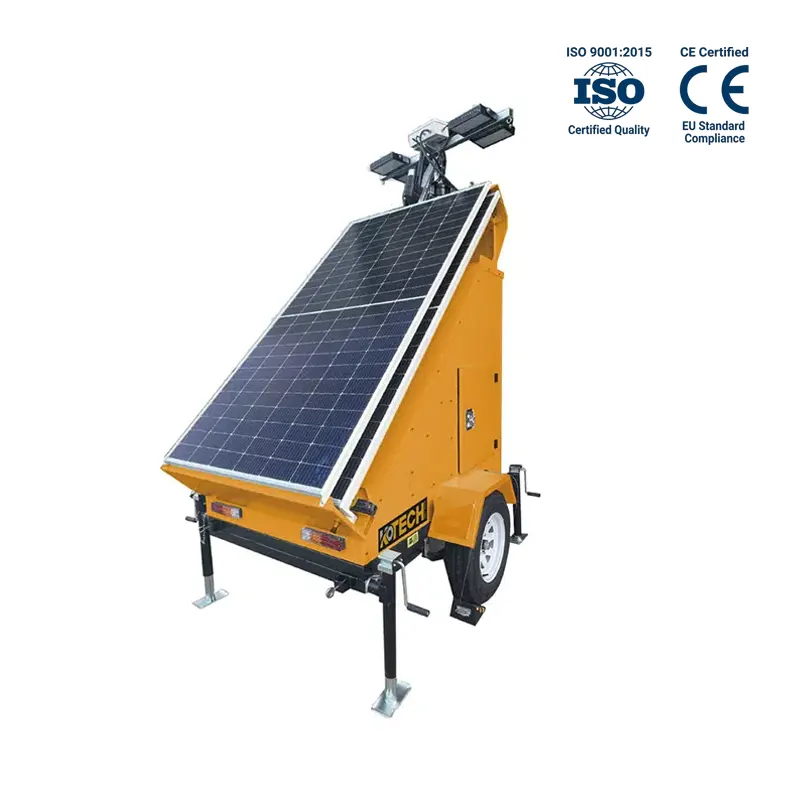

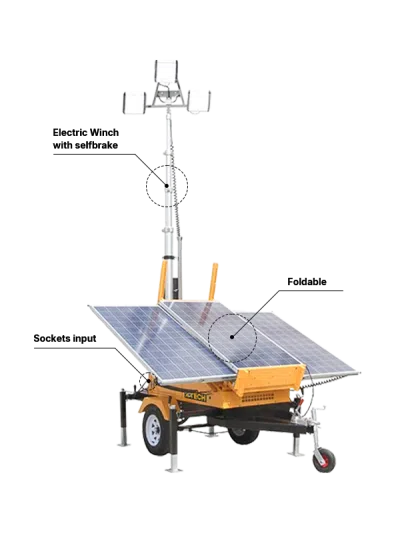

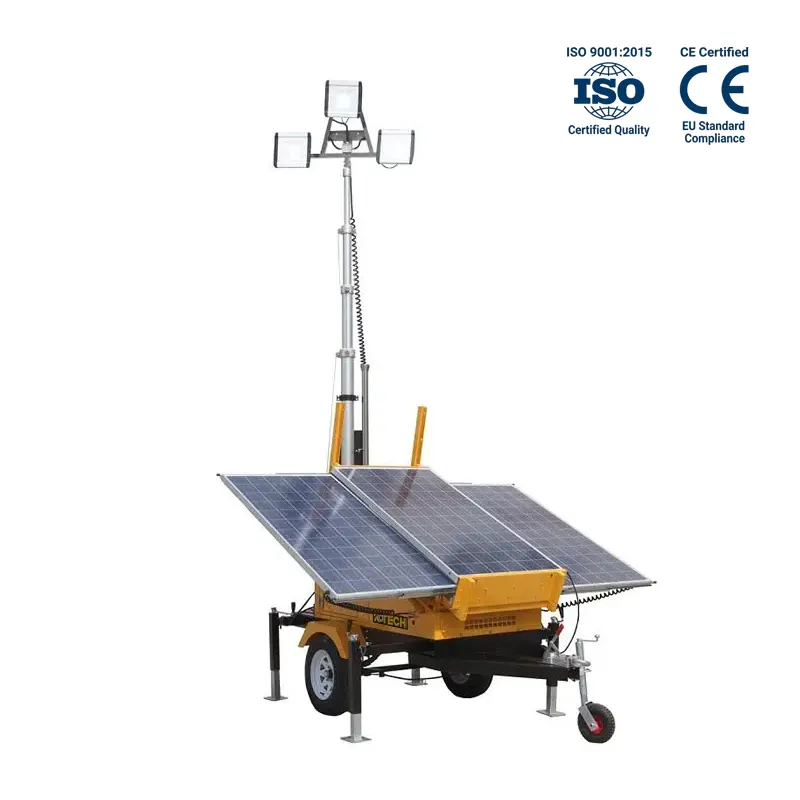

Features of the KLTS Series Solar Light Tower:
- Sustainable Illumination: Solar panels power the KLTS tower, providing clean, zero-emission lighting and reducing your reliance on the grid.
- Durable and Portable: The tower folds for easy storage and transportation, while its robust construction ensures long-lasting performance.
- 360-Degree Coverage: The KLTS tower boasts a 360-degree rotation, allowing you to direct powerful LED lights wherever needed.
- Silent Operation: Enjoy the peace and quiet of solar power. The KLTS tower operates silently, making it ideal for noise-sensitive environments.
- Extended Brightness: Extendable solar panels maximize power generation, ensuring your workspace stays brightly lit throughout the night.
- Built-in Battery Backup: The 24V 10.24kWh battery pack ensures uninterrupted operation even during power outages or cloudy weather. The battery can also be used to charge other devices.
Vesatile Lighting Solutions
The KLTS series mobile solar light tower is a valuable asset for various applications, including construction lighting, emergency response, security lighting, and outdoor events.
Available Sizes of Mobile Solar Lighting Towers:
- – KLTS-400: 4*100w Floodlights
- – KLTS-600: 4*150w Floodlights
- – KLTS-800: 4*200w Floodlights
Mobile Solar Lighting Towers Lumens
- – KLTS-400: 64000(lm) Lumens
- – KLTS-600: 96000(lm) Lumens
- – KLTS-800: 128000(lm) Lumens

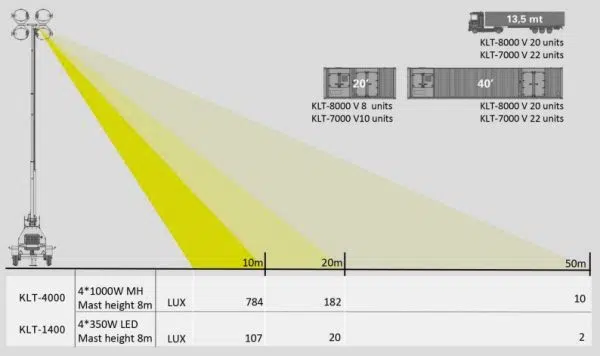

KLT Series Portable Light Tower Model Comparison
| Model | KLT-1400 | KLT-2400 | KLT-4000 | KLTS-400 | KLTS-600 | KLTS-800 |
|---|---|---|---|---|---|---|
| Lamps | LED | LED | Metal Halide | LED | LED | LED |
| Total watt(W) | 4350 | 6400 | 41000 | 4100 | 4150 | 4200 |
| Voltage(V) | 240 | 240 | 240 | 24 | 24 | 24 |
| Noise(dBA) | 67 | 67 | 67 | 0 | 0 | 0 |
| Brand | Perkins / Yanmar / Kubo | Perkins / Yanmar / Kubota | Perkins / Yanmar / Kubota | / | / | / |
| Output(KW) | 7~5 | 9.5 | 9~5.5 | / | / | / |
| Phase Number | Single | Single | Single | / | / | / |
| Insulation | Class H | Class H | Class H | / | / | / |
| Lumens(lm) | 210000 | 432000 | 440000 | 64000 | 96000 | 128000 |
| Materials | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Mast Tower Type | Manual / Vertica / Telescoping | Hydraulic / Foldable / Telescoping | Manual / Vertica / Telescoping | Electrical / Vertical / Telescoping | Electrical / Vertical / Telescoping | Electrical / Vertical / Telescoping |
| Mast Tower Height(M) | 6M/1.4M | 9M/2.2M | 8M/2.52M | 8/2.75 | 8/2.75 | 8/2.75 |
| Outriggers | With 5 points manual outriggers extended and all jack down | 5 points hydraulic outriggers extended | With 5 points manual outriggers extended and all jack down | 5 points manual outriggers and all jack down | 5 points manual outriggers and all jack down | 5 points manual outriggers and all jack down |
| Wheel and Rim | 185R/14or 165R13 | 235R/16* | 185R/14or 165R13 | 185R/14* | 185R/14* | 185R/14* |
| Auxiliary sockets | AC 216A | AC 216A | AC 216A | AC 116A | AC 116A | AC 116A |
| Controller | SmartGen 1790 | SmartGen 1790 | SmartGen 1790 | / | / | / |
| Connection protection | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Electric protection | CHINT circut breaker /Emergency Stop | CHINT circut breaker /Emergency Stop | CHINT circut breaker /Emergency Stop | CHINT circut breaker /Emergency Stop | CHINT circut breaker /Emergency Stop | CHINT circut breaker /Emergency Stop |
| Engine shutdown protection | Low oil pressure. Hight water tempreture | Low oil pressure. Hight water tempreture | Low oil pressure. Hight water tempreture | / | / | / |
| Charging | / | / | / | MPPT 50 | MPPT 50 | MPPT 50 |
| Individual lamp switch on/off | / | / | / | YES | YES | YES |
| Automatic dark /dawn on/off(Sensor) | / | / | / | YES | YES | YES |
| Running Time | Only light (Hr) | / | / | / | 20 | 15 |
| Weight(Kg) | / | / | / | 950 | 1150 | 1200 |
| Battery Type | / | / | / | Lithium storage batteies with BMS | Lithium storage batteies with BMS | Lithium storage batteies with BMS |
| Battery Capacity(KWH) | / | / | / | 10.24 | 10.24 | 10.24 |
| Battery Cycle Times | / | / | / | 4000~6000 | 4000~6000 | 4000~6000 |
| Battery Working Temperature(℃) | / | / | / | -20~60 | -20~60 | -20~60 |
| Solar Panel Total watt(W) | / | / | / | 4100 | 4150 | 4*200 |
| Solar panel type | / | / | / | Monocrystalline silicon tempered glass | Monocrystalline silicon tempered glass | Monocrystalline silicon tempered glass |
| Solar Panel Working Temperature(℃) | / | / | / | -20~85 | -20~85 | -20~85 |
Have Questions? Contact Us
Fill out the form below and we'll get back to you within 24 hours.
Frequently Asked Questions
The KLT series is engineered for resilience, operating reliably in temperatures ranging from -25°C to 55°C. The canopy features anti-corrosion coating and the mast is wind-resistant, making it ideal for harsh environments like deserts, offshore oil fields, and high-altitude mining sites.
Equipped with a 100L large-capacity fuel tank and high-efficiency diesel engines (Kohler, Kubota, or Yanmar options), the KLT series consumes up to 30% less fuel than traditional models. Depending on the engine configuration, it can support long-term operation with minimal refueling intervals.
Yes. We offer world-renowned engine brands such as Perkins, Kubota, and Kohler. Since these brands have global service networks, you can easily find spare parts and technical support in your local market, ensuring minimal downtime for your projects.
Absolutely. The KLT series features a compact design with integrated forklift pockets, a central lifting point, and heavy-duty wheels. Its retracted height of only 2.52M allows for cost-effective container loading and easy towing to remote construction or disaster relief zones.
Yes, the KLT series is equipped with 2×16A auxiliary power sockets. This allows operators to power small electric tools, laptops, or communication devices directly from the light tower's generator while the lights are in use, maximizing job site utility.
Our 4×350W LED lamps provide instant on/off (no cool-down period required), a longer lifespan (up to 50,000 hours), and significantly lower power consumption. However, we still offer 4×1000W Metal Halide options for clients who prefer traditional high-intensity discharge lighting.
Safety is our priority. The KLT series includes an automatic mast lock system, an emergency stop button, and a stable outrigger system to prevent tipping in high winds. All electrical components are CE-certified, and the units feature noise-reduction technology for use in urban or noise-sensitive areas.
