KVF Series | High-Efficiency Industrial Booster Air Compressor | 30-60 Bar Pressure
Specifically designed to elevate existing pipeline pressure, Kotech Booster Air Compressors provide stable output up to 40 bar. Ideal for PET blowing, pipeline leak testing, and specialized industrial processes where standard pressure is insufficient.
Click the button to consult, and we will provide a fast quotation within 3 hours
Functional Configuration
- 24/7
- Heavy-duty continuous operation
- Boost Pressure
- Secondary Pressure Boosting
- Precision Control
- Precision Pressure Control
- Low Maintenance
- Low Maintenance Reciprocating Design
Performance Parameters
- Working Pressure
- 30 - 60 bar (435.11 - 870.23 psi)
- Air Delivery
- 1.4 - 3 m³/min (49.44 - 105.94 cfm)
- Power Rate
- 37 - 118 kW (49.63 - 158.14 hp)
Why Kotech Booster Series is the Smart Choice
Common High-Pressure Procurement Challenges
- Extremely high energy costs of running the whole plant at high pressure
- Prohibitive capital costs for standalone high-pressure compressors
- System instability when trying to over-pressurize standard compressors
- Production delays due to insufficient pressure for PET blowing or testing
Optimized High-Pressure Integration Solutions
- Maintain a low-pressure main line and boost only the specific terminal
- Save up to 30-50% in energy compared to standalone high-pressure units
- Heavy-duty components designed specifically for high-ratio compression
- Customized pressure and flow settings to match your exact tool requirements
Recommended Applications
Technical Characteristic:
The power system of this equipment is directly driven by Diesel Engine.
The compressor increases the pressure of air from low pressure to the required high pressure through one stage compression. it transforms the rotary motion of crankshaft into reciprocating linear motion of piston through crankshaft, piston and connecting rod mechanism.
The volume which is composed of cylinder and piston changes periodically under the action of piston, so that the air in the cylinder can continuously complete the process of suction, compression, discharge and expansion, and the pressure can be increased through one stage compression.

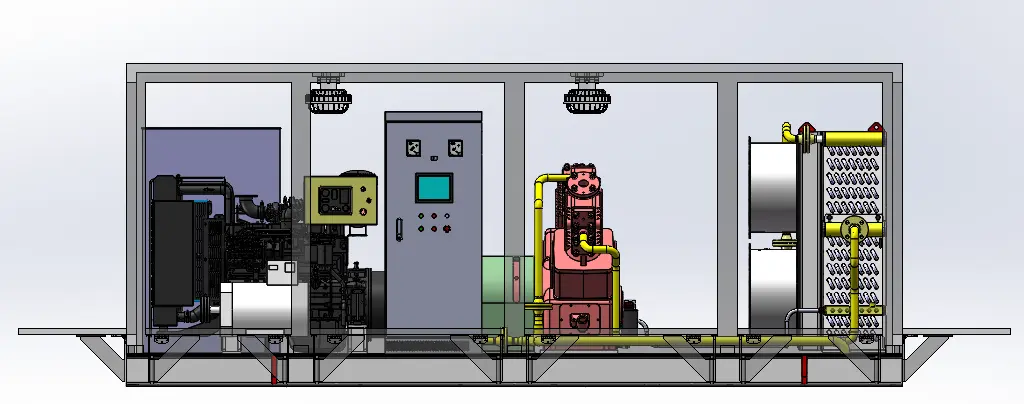

The diesel high pressure booster compressor is driven directly by the reducer and shaft coupling. The whole system is installed on a skid-mounted base, it has the advantages of light weight, high automation, complete protection, safety and reliability.
Smart air controller:
A touch screen for controlling and displaying compressor parameters is integrated on the electrical cabinet, and a diesel engine monitor is installed next to it. The monitor can start the diesel engine, adjust the speed of the diesel engine at any time, and display the relevant parameters of the diesel engine from time to time. The user can also maintain the diesel engine according to the relevant parameters in the engine maintenance information column on the monitor.
Application industry:
The Diesel 30 – 60Bar Booster Air Compressors are widely used in petrochemical industry, shipbuilding industry, pressure test for pressure vessel, pipeline pressure testing and other fields.
Frequently Asked Questions
Our booster series is designed to handle intake pressures from standard lines and boost them up to 15-40 Bar (217-580 PSI), depending on the specific model and your application requirements.
Yes. The Kotech booster is engineered for seamless integration. It acts as a secondary compression stage, taking your existing 7-10 Bar air and elevating it to the high-pressure level needed for specialized equipment.
These units are essential for industries such as PET bottle blowing, high-pressure leak testing, oil and gas exploration, nitrogen boosting, and precision CNC laser cutting.
Instead of running your entire factory at a high-pressure level (which is very expensive), a booster allows you to maintain a low-pressure main line and only boost the pressure where it's actually needed, significantly reducing overall energy consumption.
Absolutely. Built with heavy-duty industrial components and an advanced cooling system, our boosters are designed for 100% duty cycle in harsh environments, ensuring maximum uptime for your production line.
Maintenance is straightforward and cost-effective. Regular checks on the lubricant levels, air filters, and valve gaskets are recommended. Our design ensures easy access to all service points to minimize downtime.
Yes. We understand that every project is unique. We offer both portable and stationary configurations, and our engineering team can customize the flow rate and pressure settings to match your specific industrial process perfectly.
Kotech Booster Series Technical Parameters
| Model | Air Delivery(m3/min) | Inlet pressure(Bar) | Outlet pressure(Bar) | Rotation Speed(Rpm) | Motor power(KW) |
|---|---|---|---|---|---|
| KVW-1/5-30 | 1.5 | 5 | 30 | 450 | 37 |
| KVM-1.4/3-31 | 1.4 | 3 | 31 | 590 | 45 |
| KVW-1.2/6-33 | 1.2 | 6 | 33 | 520 | 45 |
| KVW-2.4/3-30 | 2.4 | 3 | 30 | 700 | 55 |
| KVW-1.5/5-30 | 1.5 | 5 | 30 | 620 | 55 |
| KVW-1.4/6-31 | 1.4 | 6 | 31 | 590 | 55 |
| KVW-1.8/5-31 | 1.8 | 5 | 31 | 740 | 55 |
| KVW-2.6/5.5-30 | 2.6 | 5.5 | 30 | 620 | 90 |
| KVW-3/5-34 | 3 | 5 | 34 | 700 | 110 |
| KVF-1.4/(20-34)-60 | 1.4 | 20-34 | 60 | 740 | 118 |
